Product Details
The main technical specifications :
Power supply Input: 220-240V~ 50Hz/60Hz 150mA
Main unit input: 24V~ l.3A
Output primary tip vibration excursion: ≤100μm
Output half-excursion force:<2N
Output tip vibration frequency: 28kHz±3kHz
Output power: 3W to 20W
Main unit fuse: Tl.6AL 250V
Power supply fuse: T0.5AL 250V
Weight of main unit: 1.17kg
Weight of power supply: 1 kg
Operating mode: Continuous operation
Woodpecker brand scaler products are mainly used to remove calculus in dentistry and are important equipment for dental disease prevention and treatment. UDS-E LED ultrasonic scaler is suitable for dental removal of calculus, cleaning and washing of root canals.
The features of this equipment are:
a) The handle has LED light, which is more convenient for clinical operation.
b) With automatic water supply function, it is more convenient to use.
c) The inner water pipe is made of anti-corrosion materials, and special liquid medicines, such as hydrogen peroxide, chlorhexidine, and sodium hypochlorite, can be used to greatly improve the effect of periodontal treatment and root canal washing.
d) The automatic frequency tracking system is adopted to automatically search for the best working state, and the machine performance is stable.
e) The working handle can be freely pulled out and inserted, and can be sterilized at a high temperature of 134°C and a high pressure of 0.22MPa.
f) The working process is fully controlled by microcomputer, which is convenient and simple to operate and has high efficiency.
1.2 Model Specifications

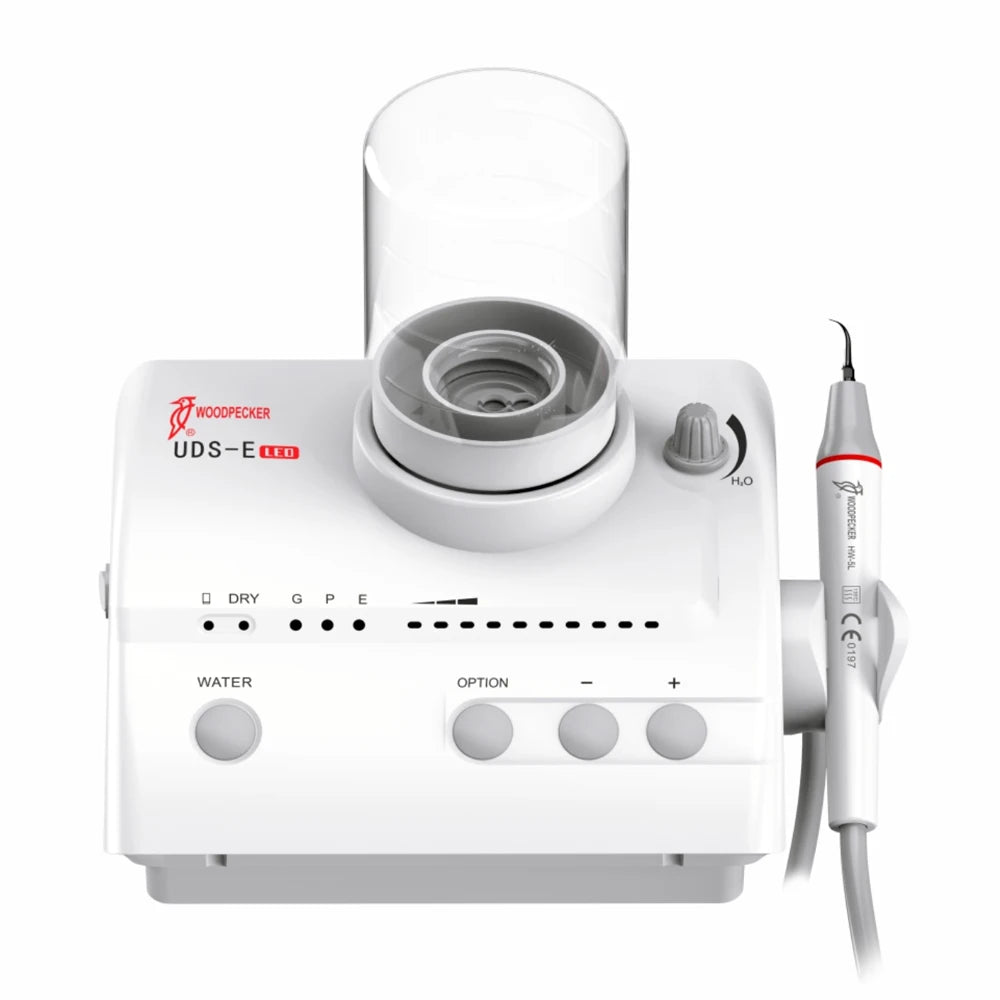

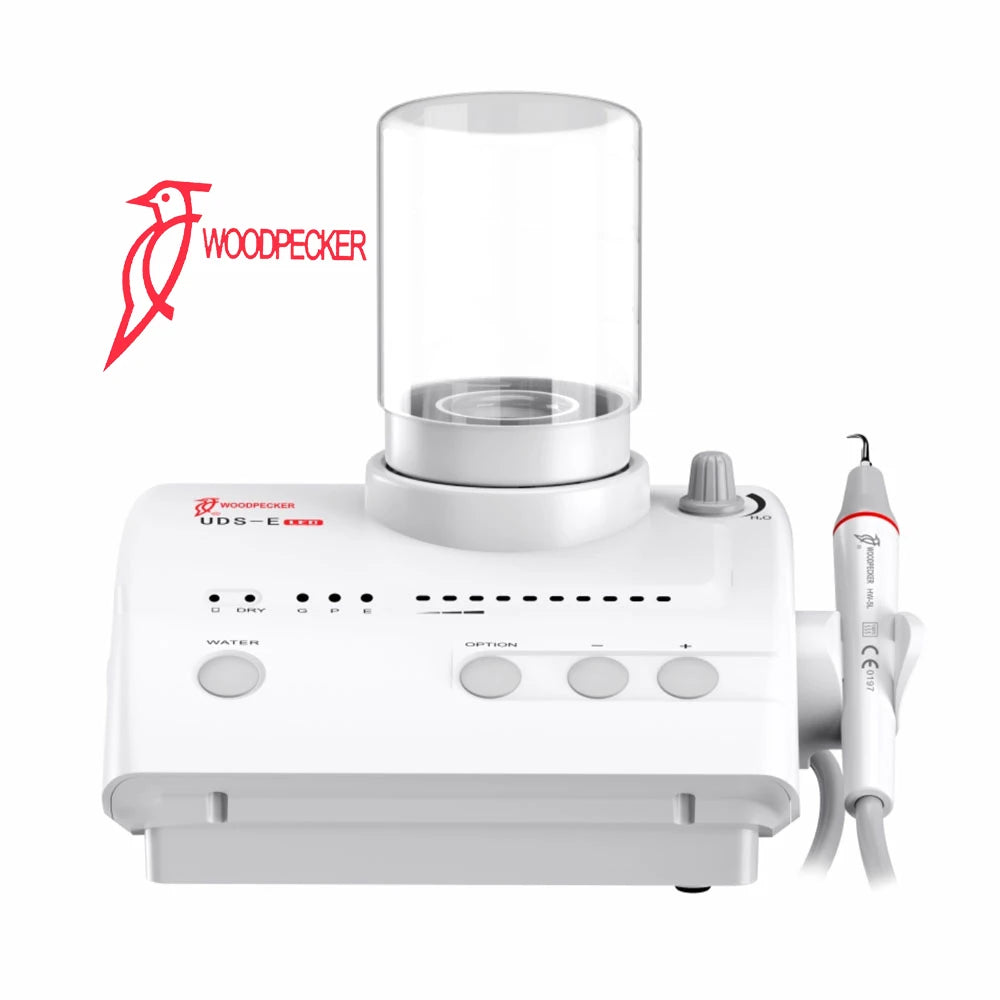

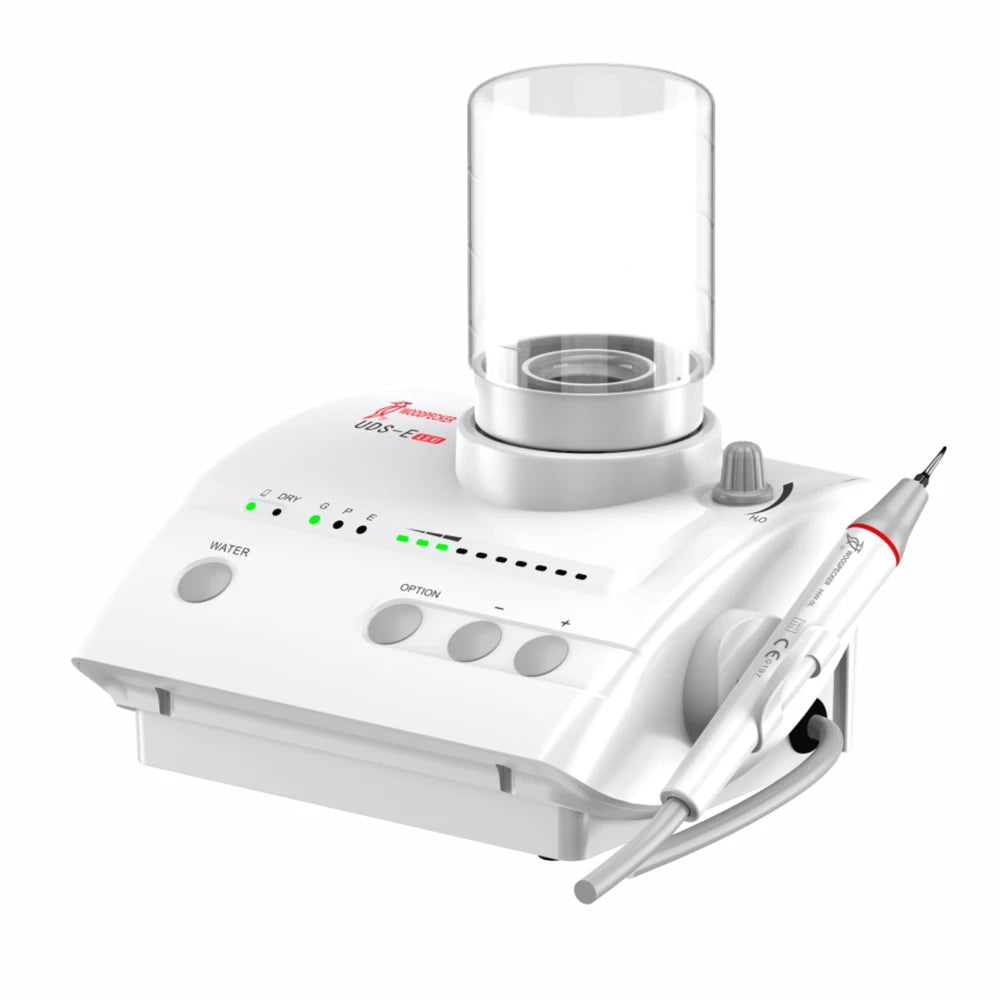

UDS-E LED type

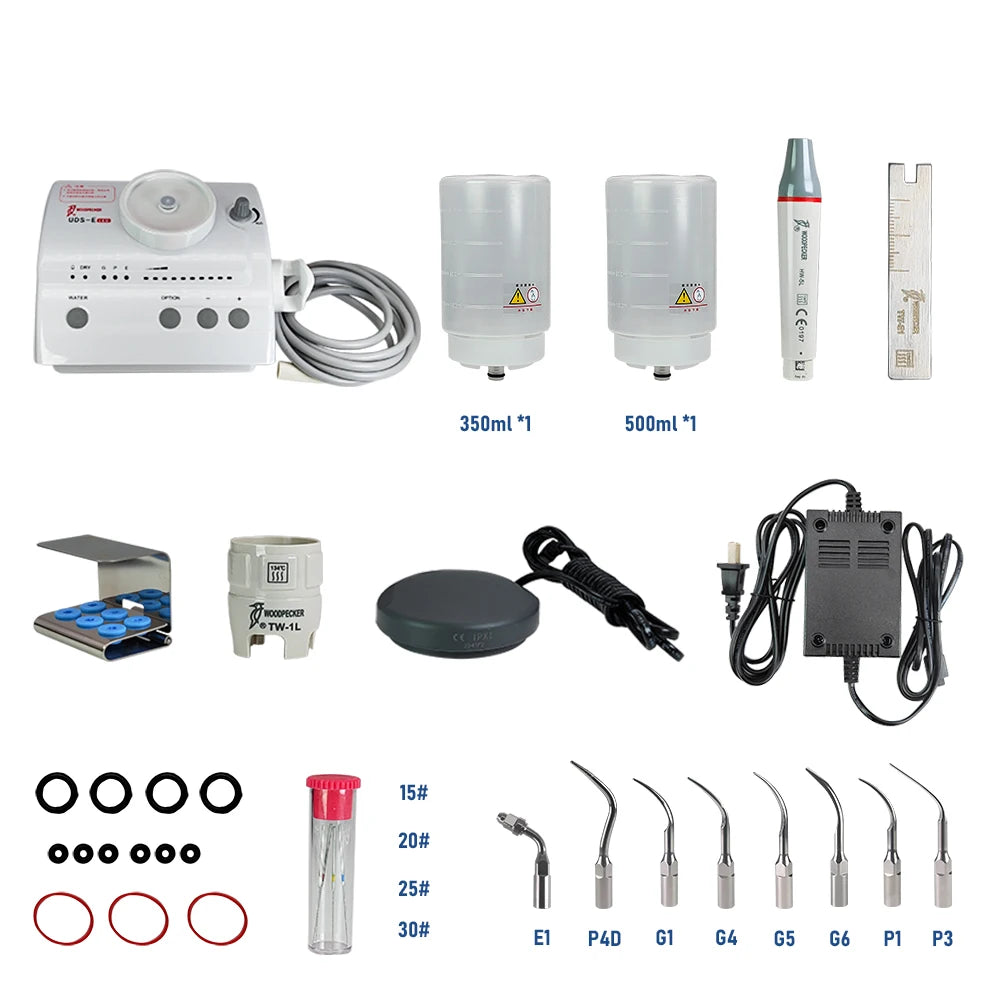

1.3 Machine configuration The machine configuration is detailed in the packing list.
1.4 Performance structure and composition It is composed of host, handle, working tip, foot switch and power adapter.

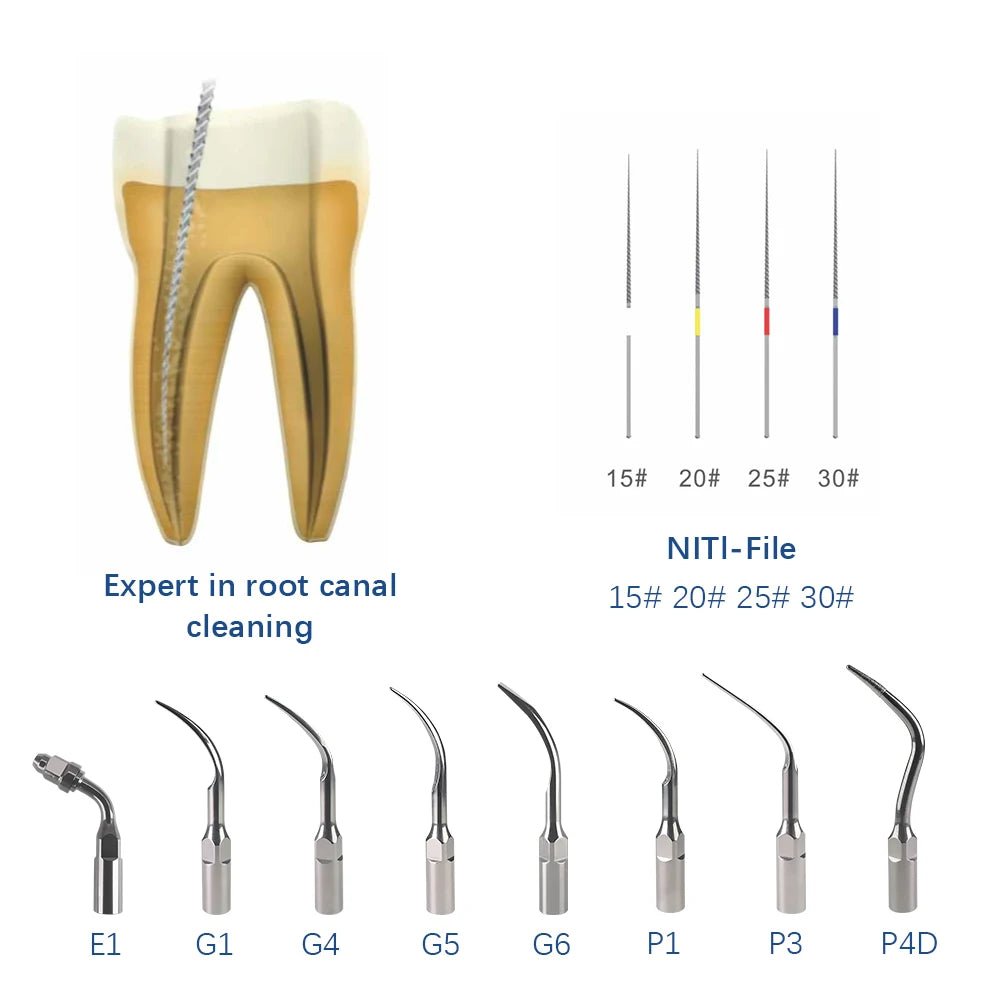

1.5 Scope of application It is suitable for dental removal of calculus, cleaning and washing of root canals.
Note: This product only has 1 needle.
A good helper for dentist
- Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily .
- Digitally controlled , easy operation and more efficient for scaling.

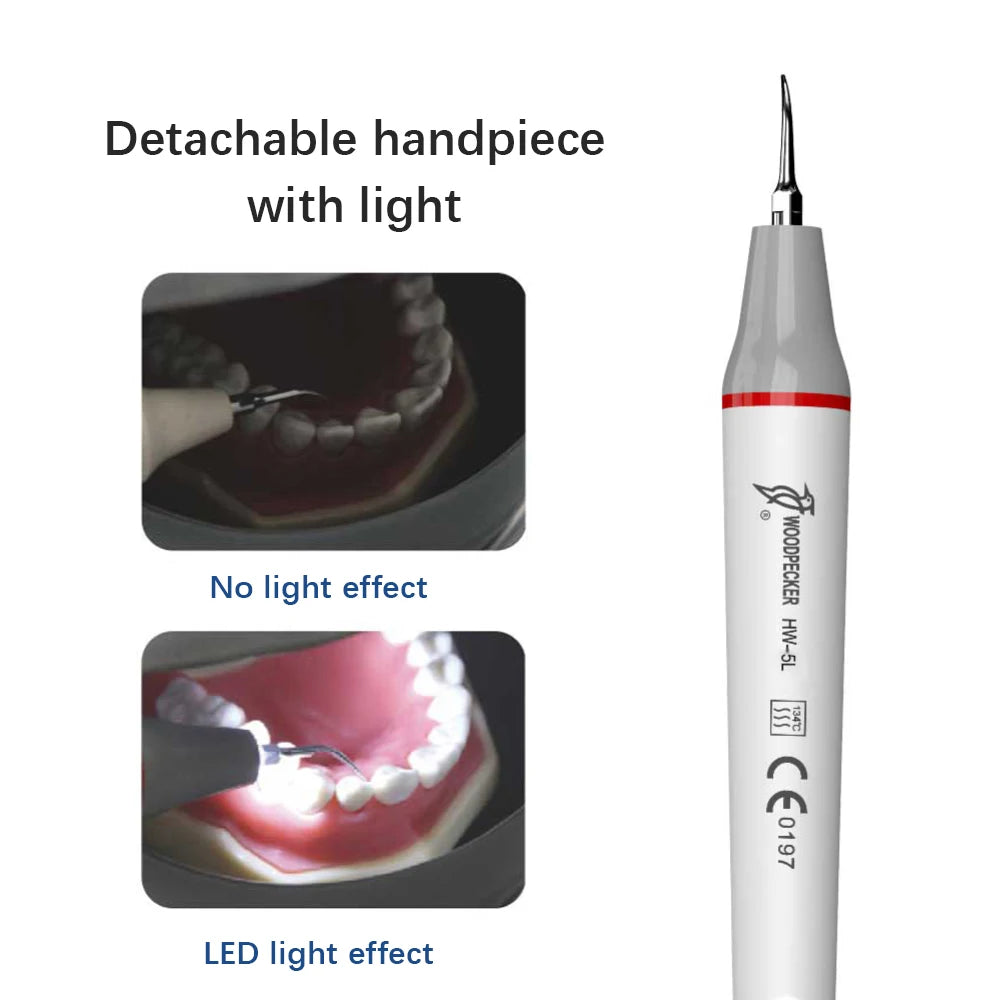

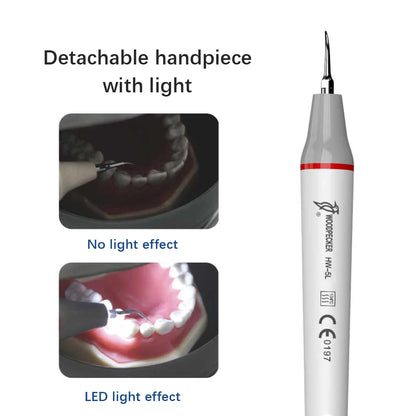

Detachable handpiece with light
- Shell of the handpiece is made of special imported plastic from America.
- Without cracking or deformation under the pressure.
- Detachable handpiece with light,better visibility.
