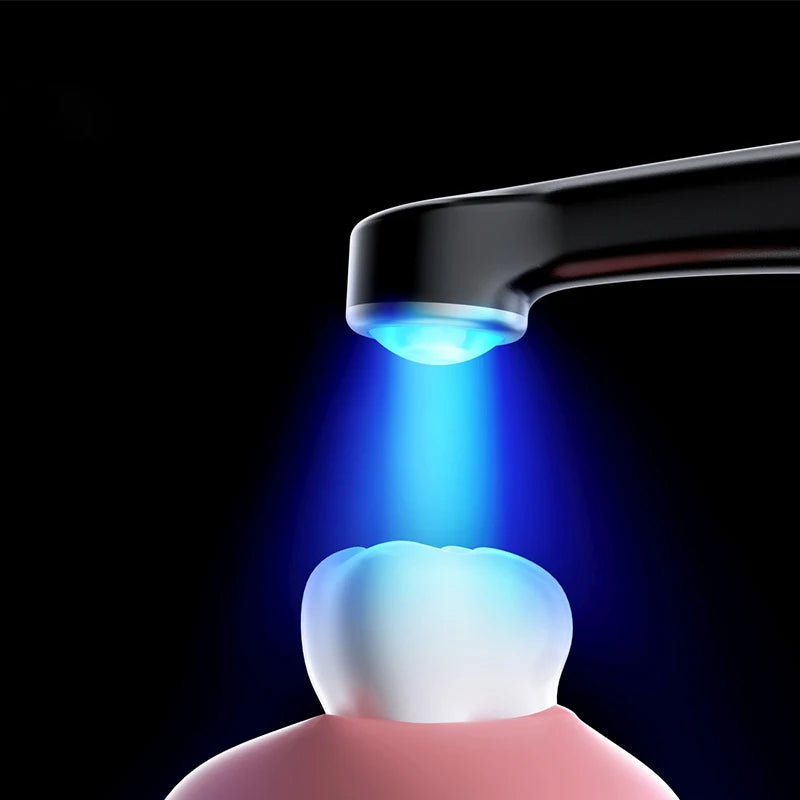

Product Details

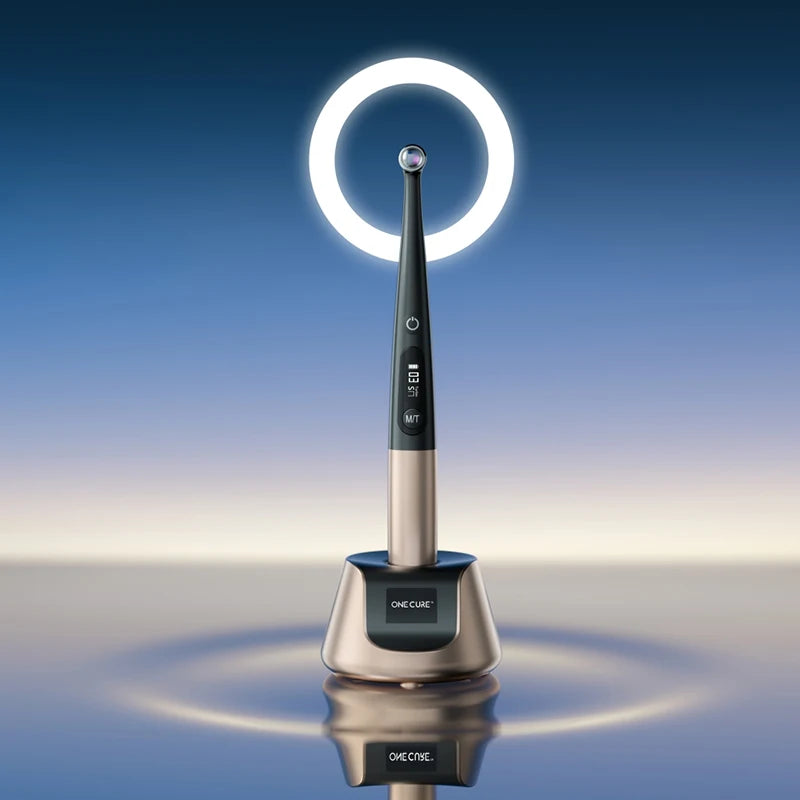

O-Star
- Samrt but poweful making a big difference
- 7 modes to fully meet a variety of clinical needs
- Uniform beam,strong penetrability
- Less light loss
- Light intensity up to 3000 mW/cm²
- Charging base with
Technical Specifications :
- Size of main uint: 23mm×23mm×204mm
- Net weight of main unit: 108g
- Applied parts of the equipment: Top of main unit, Point cure lens
- Duty cycle of the equipment: 20 Sec on/20 Sec off
- classified by power supply
- The power supply by the rechargeable battery
- Rechargeable Lithium battery:
- Battery model:18500, Battery capacity: 2000mAh
- Battery has over-voltage, over current and short circuit protection
- Adapter(charge) Input: 100-240V~ 50/60Hz 0.4A Max.
- Output: 5.0V 1A
- The adapter must be complies with IEC 60601-1 and IEC 60601-1-2
- 10W high power
- Wave length: 385nm~515nm
- Class: class 2 AEL: 3.9×10-3J
WIDE-SPECTRUM CURINGL IGHT
ULTIMATE CURING EXPERT

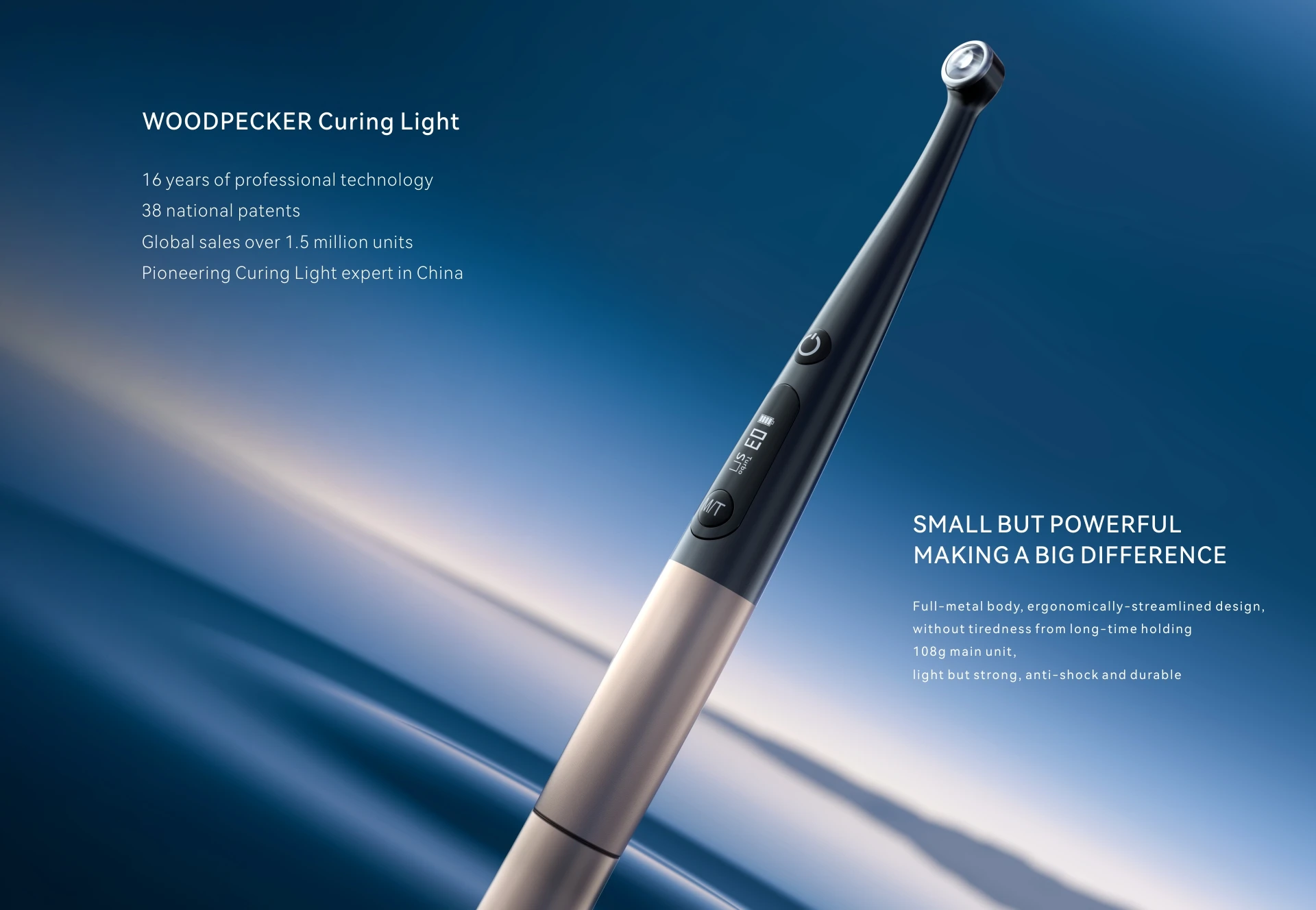

WOODPECKER Curing Light
- 16 years of professional technology
- 38 national patents
- Global sales over 1. 5 million units
- Pioneering Curing Light expert in China
SMAL L BUT POWERFUL
MAKING A BIG DIFFERENCE
- Full- metal body, ergonomically-stre amlined design,
- without tiredness from long-time holding
- 108g main unit,
- light but strong, anti-shock and durable
7 MODES TO FULLY MEET A VARIETY OF CLINICAL NEEDS
- Like an all star, O-Star is strong in performance, well-controlled and can fully meet various clinical needs.
- Normal High Turbo Ortho Soft Pulse Check.
Normal Mode
- Constant light intensity:1000- 1200mw/c㎡.
- Suitable for most treatment scenarios,such as illings, restorations, etc.
- Time setting: 5s, 10s, 15s, 20s.
High Mode
- Constant light intensity:1800-2000 mw/c㎡.
- Suitable for quick curing,ensuring enough curing depth.
- Time setting: 3s, 5s.
Turbo Mode
- Time setting: 1s, 3s.
- 2700-3000mw/c㎡.
- Ultra-high light intensity enables.
- 1 sec curing of 2mm resin.
Ortho Mode
- Time setting: 3s*5, 3s*10.
- 2700- 3000mw/c㎡.
- High light intensity with strong penetrability,especially suitable for orthodontic bracket bonding.
Soft Mode
- Light intensity is gradually increased from 0 to 1200mw/c㎡.
- Time setting: 5s, 10s, 15s, 20s.
- Effectively reduce the shrinkage rate of resin.
- Lower the risk of microleakage.
Pulse Mode
- The LED will stop for 0.4s at an interval of 0.6s curing.
- When working in a cycle of treatment,it can effectively reduce heat generation,efficiently dissipate heat and ensure the comfort of diagnosis and treatment.
- Time setting: 5s, 10s, 15s, 20s.
Check Mode
- This mode outputs a single purple light. When special glasses are worn, the caries are obviously orange-red.
- Application: Detection of caries,calculus and cracked tooth.

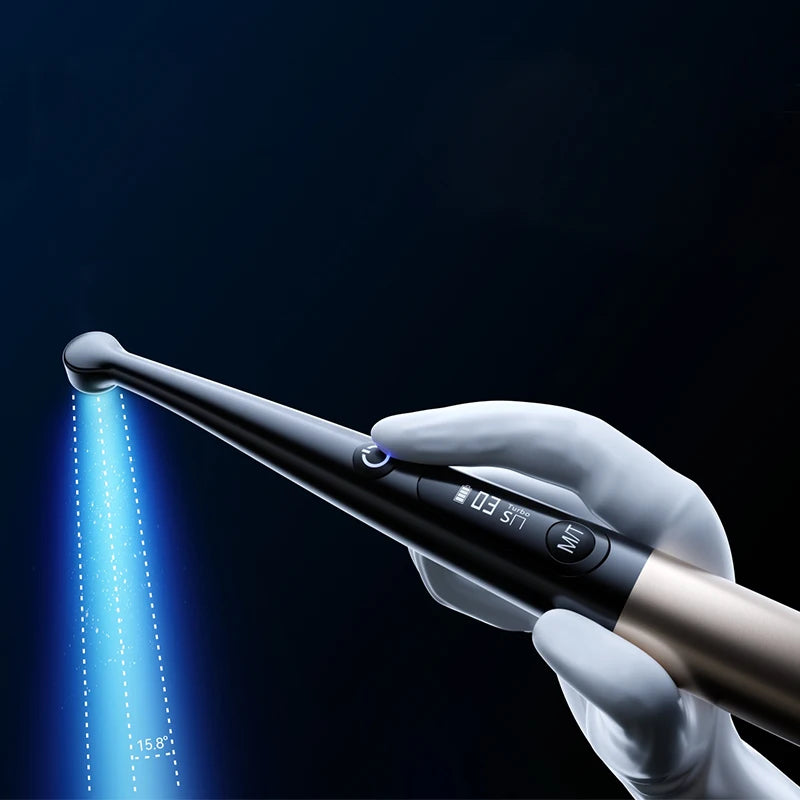

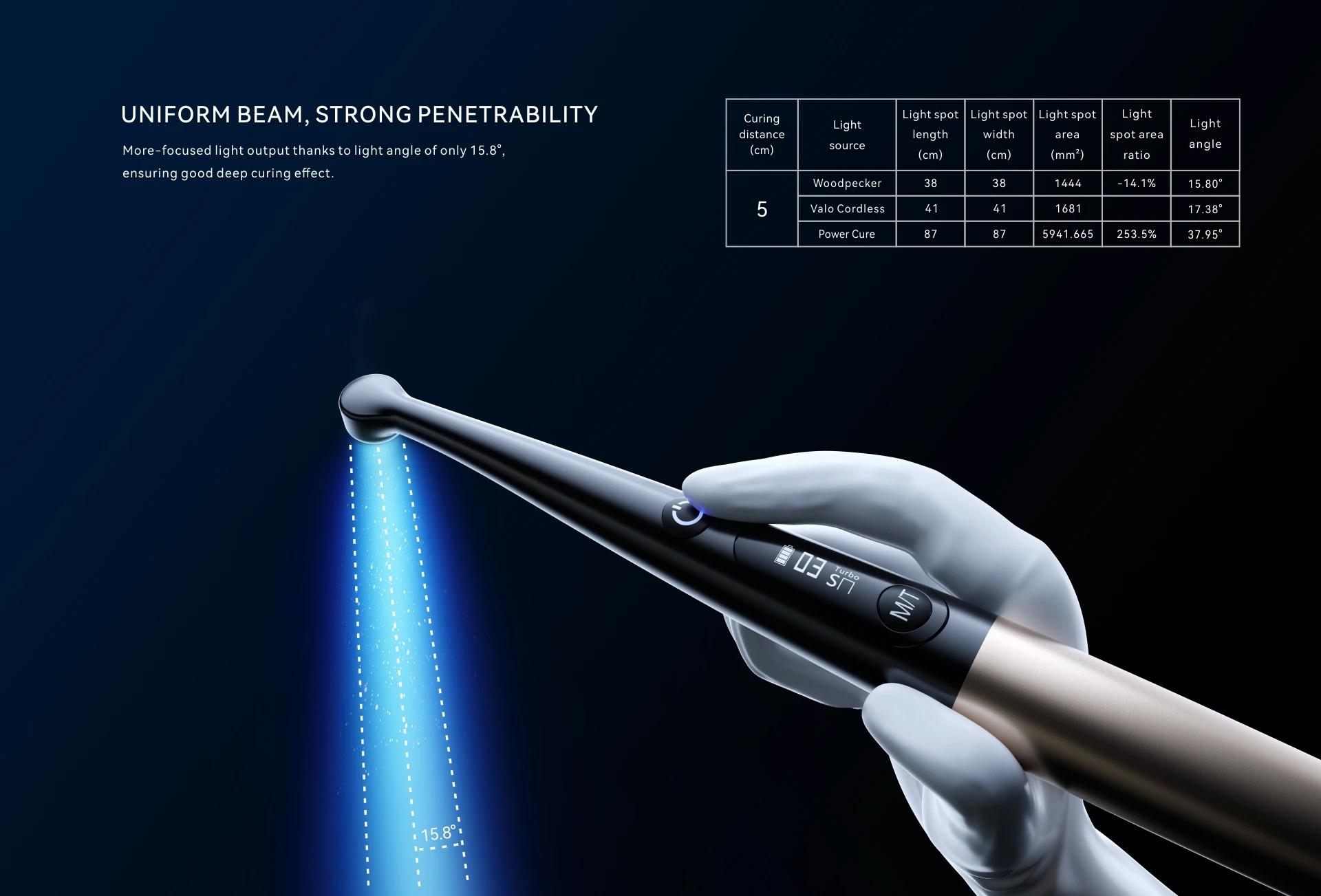

UNIFORM BEAM, STRONG PENETRABILITY
More -focused light output thanks to light angle of only 15.8°,ensuring good deep curing effect.

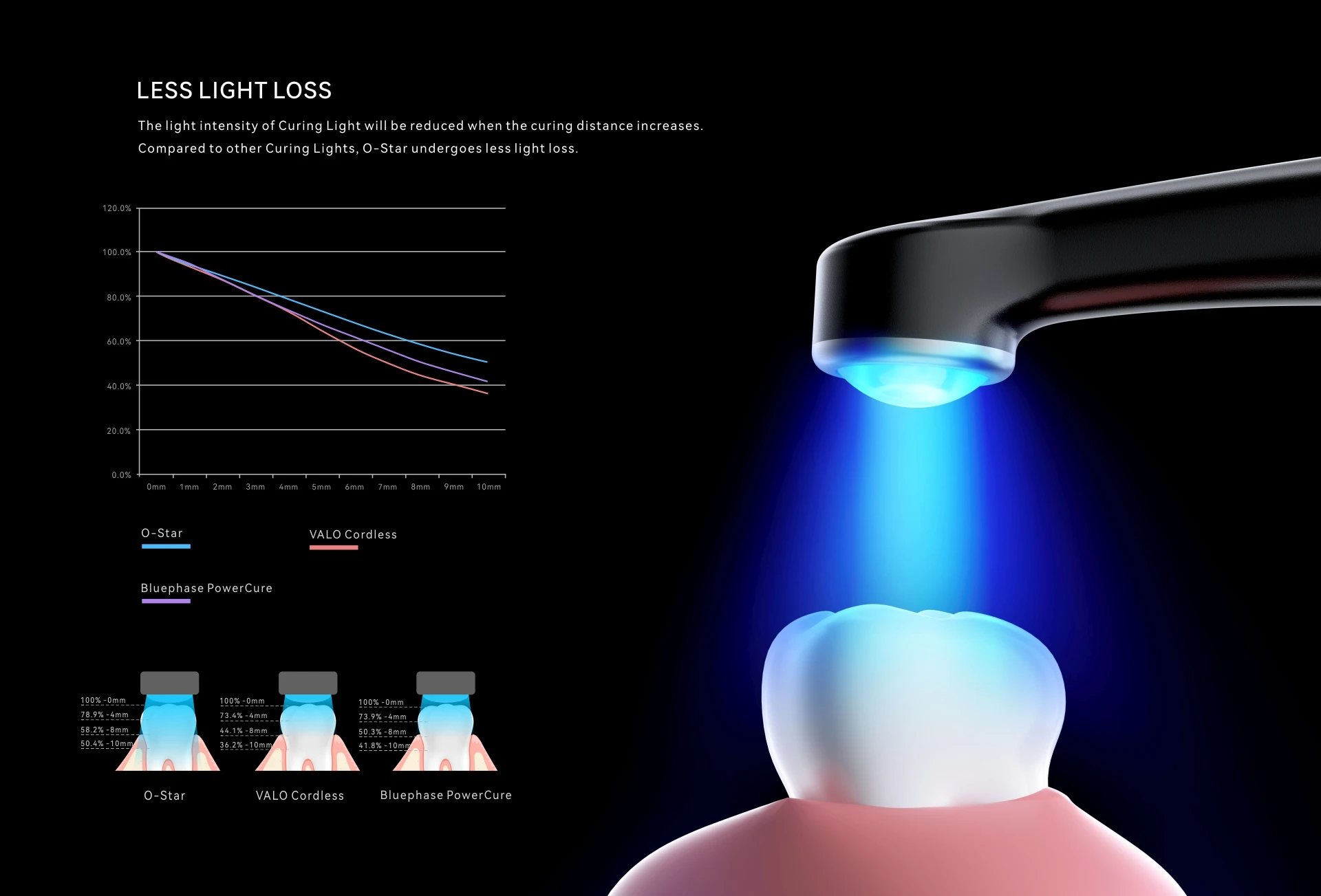

LESS LIGHT LOSS
- The light intensity of Curing Light will be reduced when the curing distance increases.
- Compared to other Curing Lights, 0- Star undergoes less light loss.

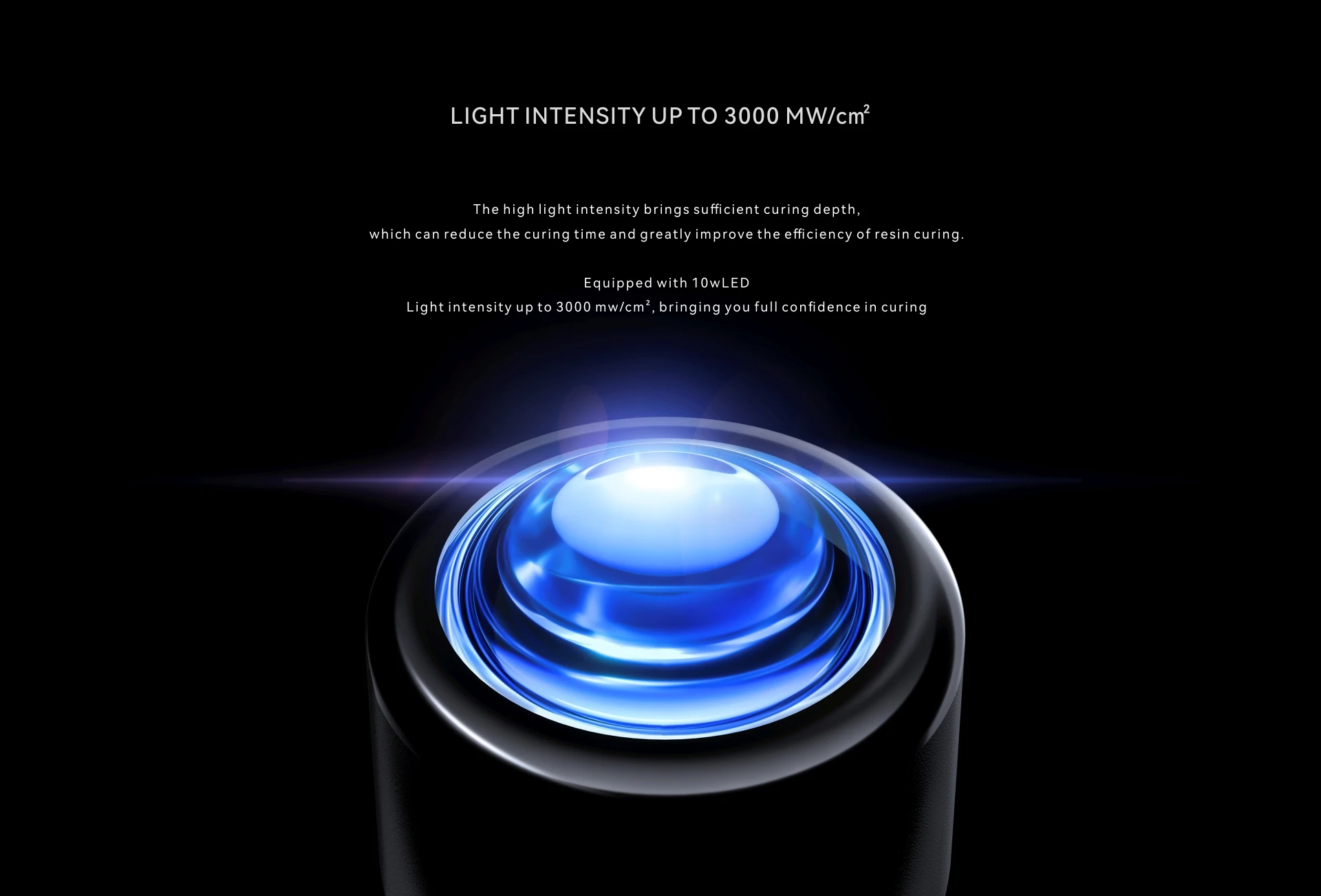

LIGHT INTENSITY UP TO 3000 MW/c㎡
- The high light intensity brings sufficient curing depth,which can reduce the curing time and greatly improve the efficiency of resin curing.
- Equipped with 10wL ED.
-
Light intensity up to 3000 mw/c㎡,bringing you full confidence in curing.

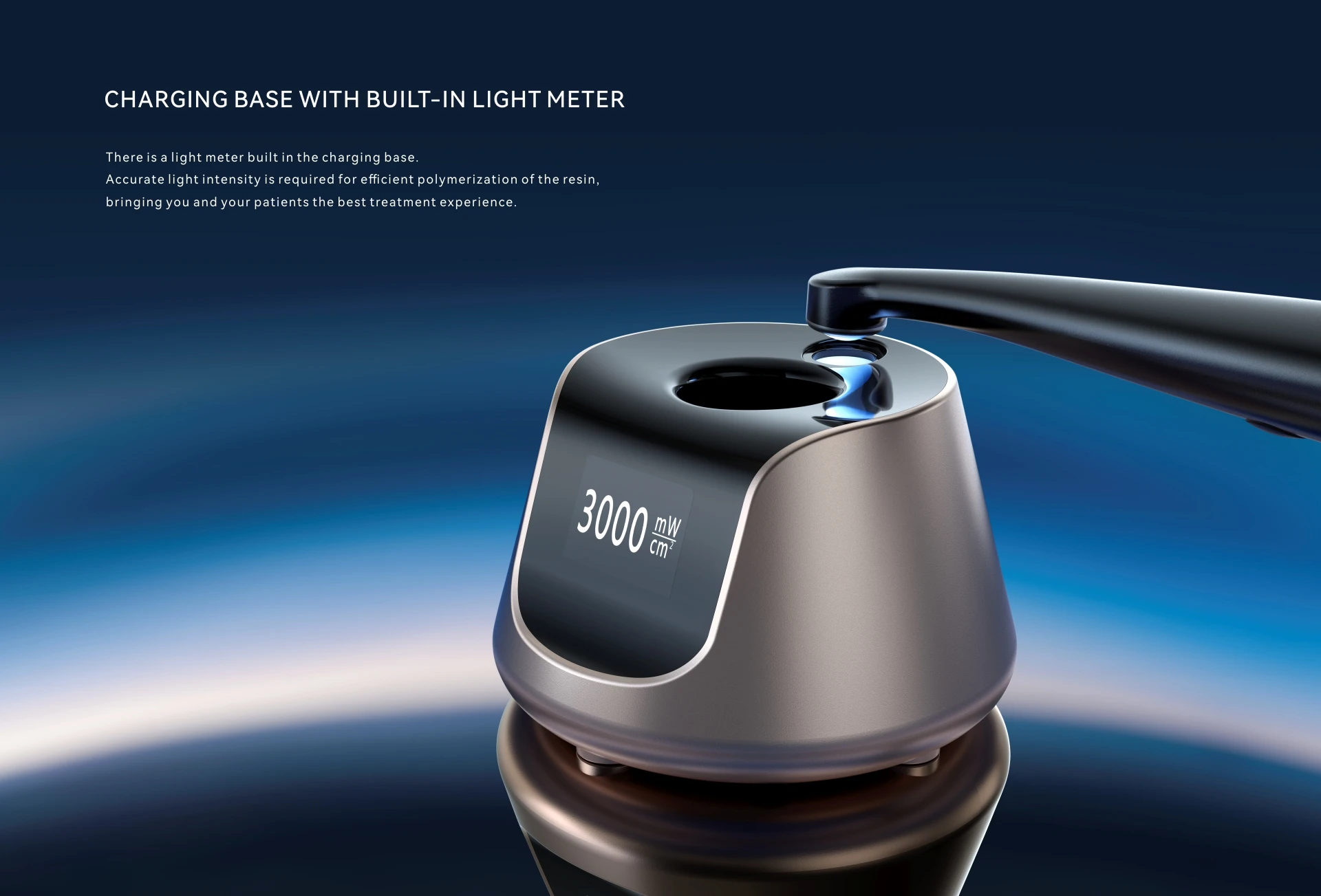

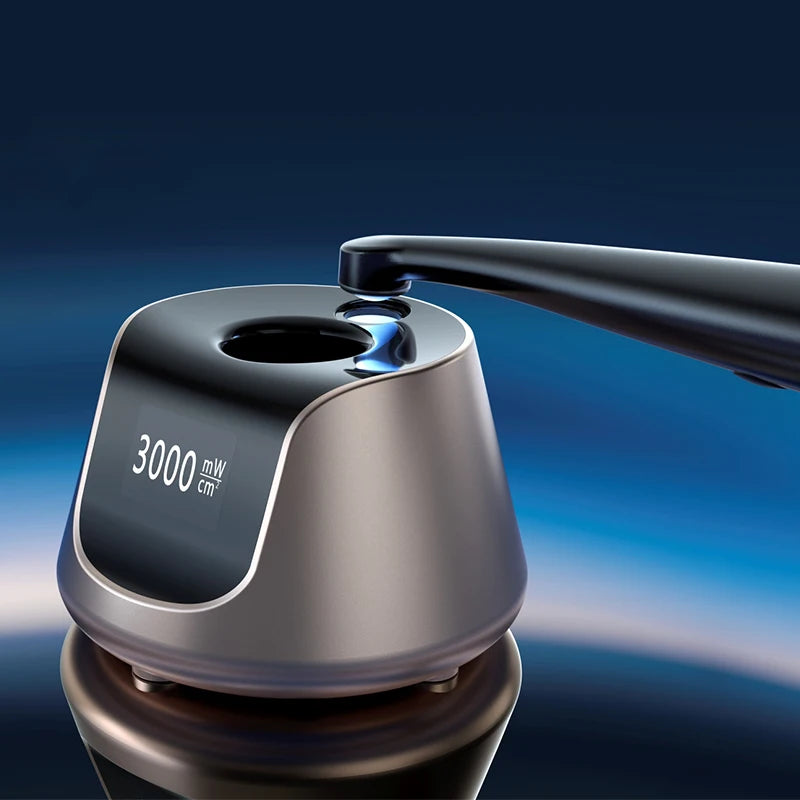

CHARGING BASE WITH BUILT-IN LIGHT METER
- There is a light meter built in the charging base.
- Accurate light intensity is required for efficient polymerization of the resin,bringing you and your patients the best treatment experience.

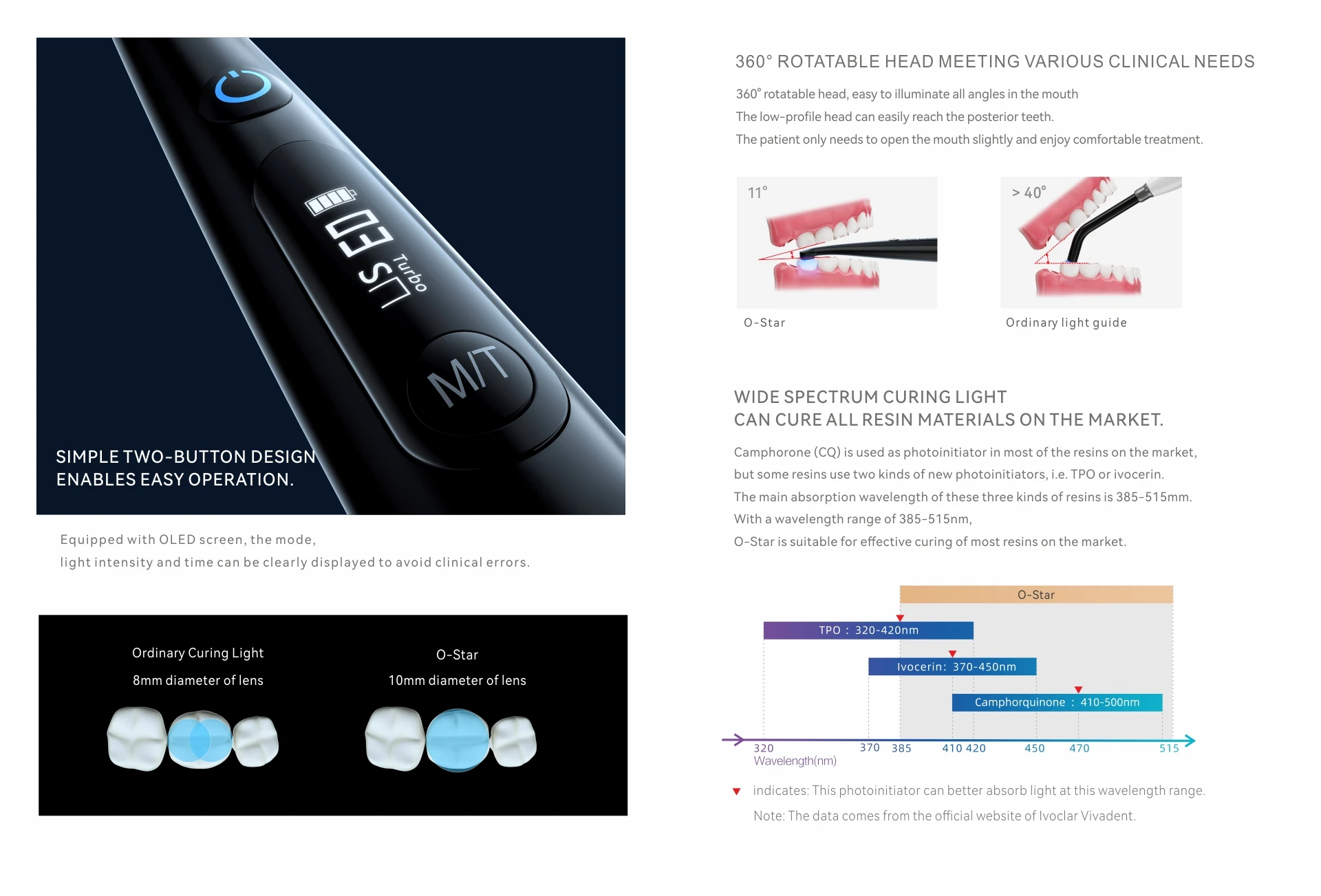

360° ROTATABL E HEAD MEETING VARIOUS CLINICAL NEEDS
- 360° rotatable head, easy to iluminate all angles in the mouth
- The low-profile head can easily reach the posterior teeth.
- The patient only needs to open the mouth slightly and enjoy comfortable treatment.
WIDE SPECTRUM CURING LIGHT CAN CURE ALL RESIN MATERIALS ON THE MARKET.
- Camphorone (CQ) is used as photoinitiator in most of the resins on the market,but some resins use two kinds of new photoinitiators, i.e. TPO or ivocerin.
- The main absorption wavelength of these three kinds of resins is 385- 51 5mm.
- With a wavelength range of 385-51 5nm,O-Star is suitable for effective curing of most resins on the market.
- Equipped with OLED screen, the mode,light intensity and time can be clearly displayed to avoid clinical errors.
indicates: This photoinitiator can better absorb light at this wavelength range.
Note: The data comes from the official website of lvoclar Vivadent.

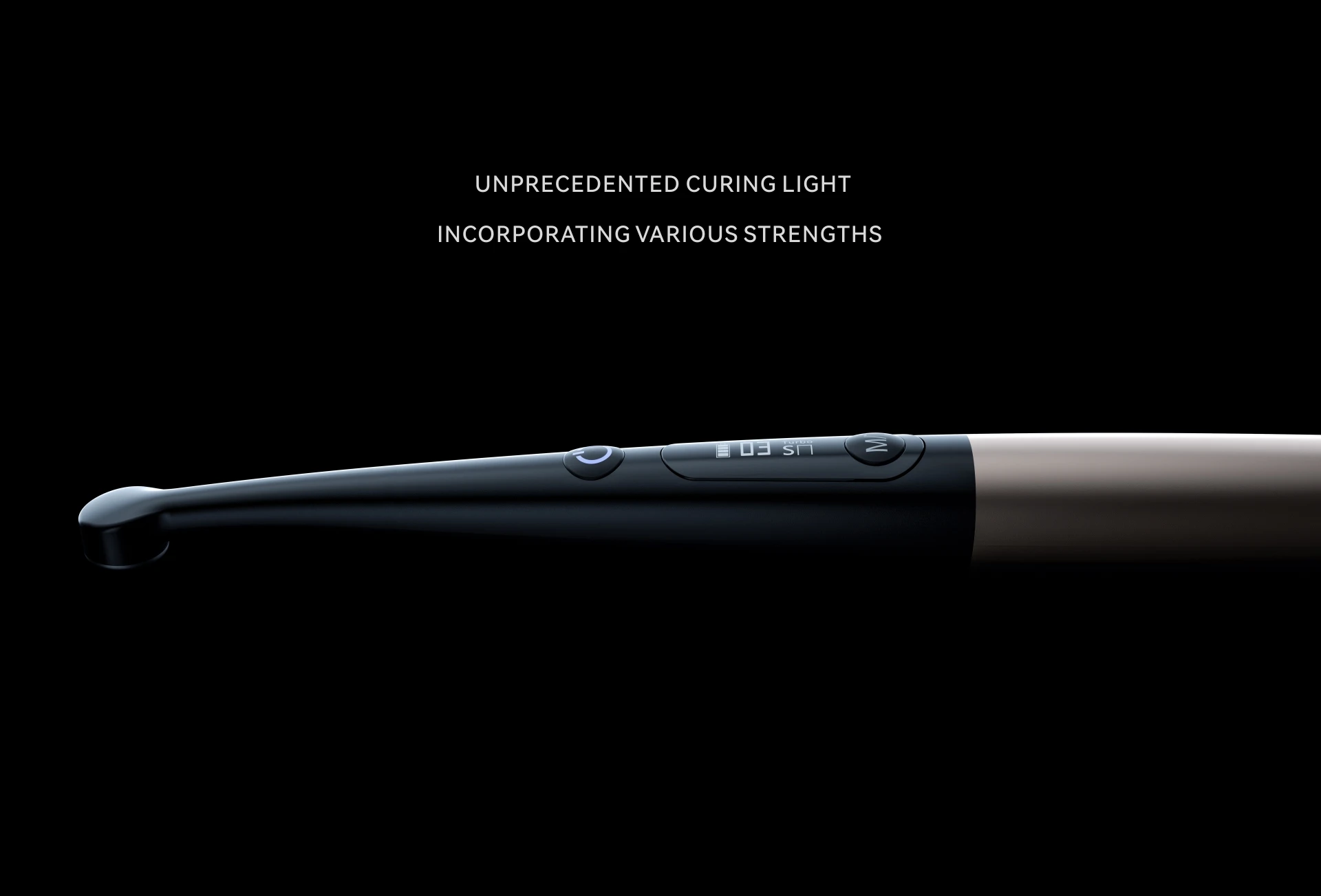

UNPRECEDENTED CURING LIGHT
INCORPORATING VARIOUS STRENGTHS
