Product Details

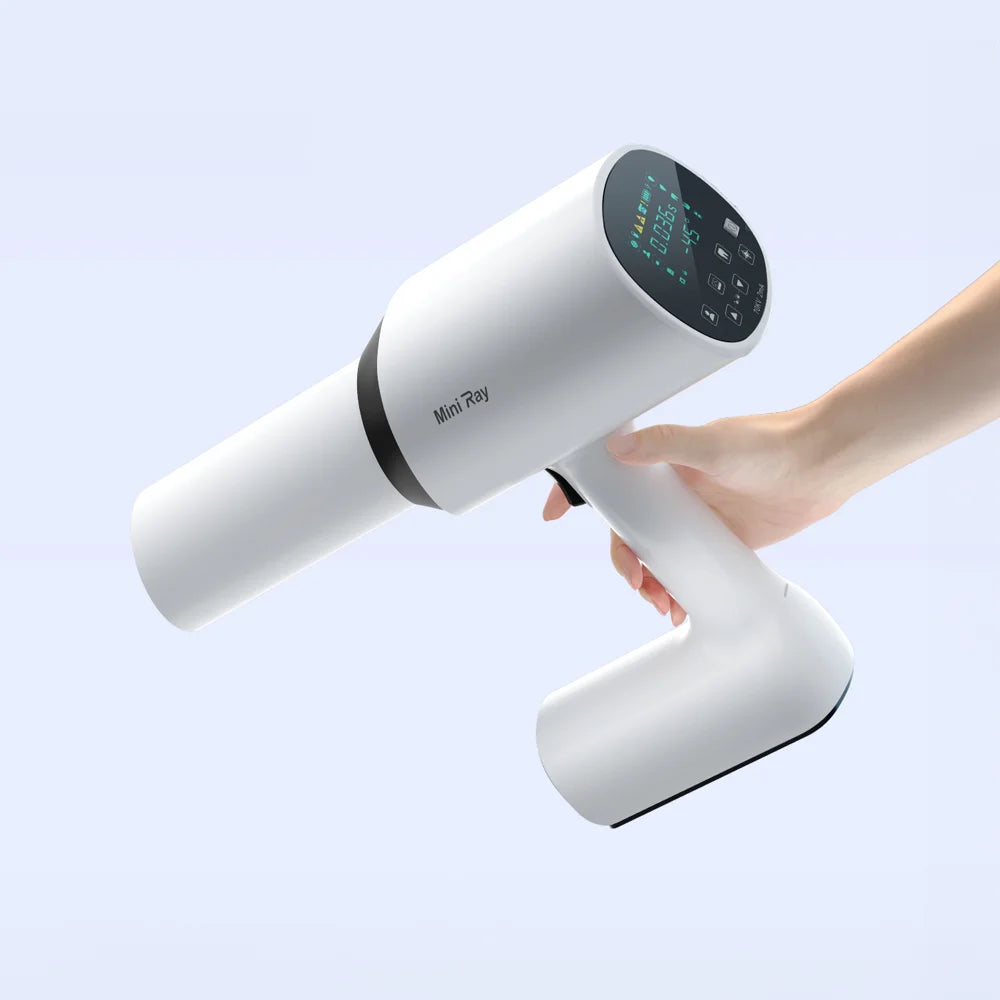

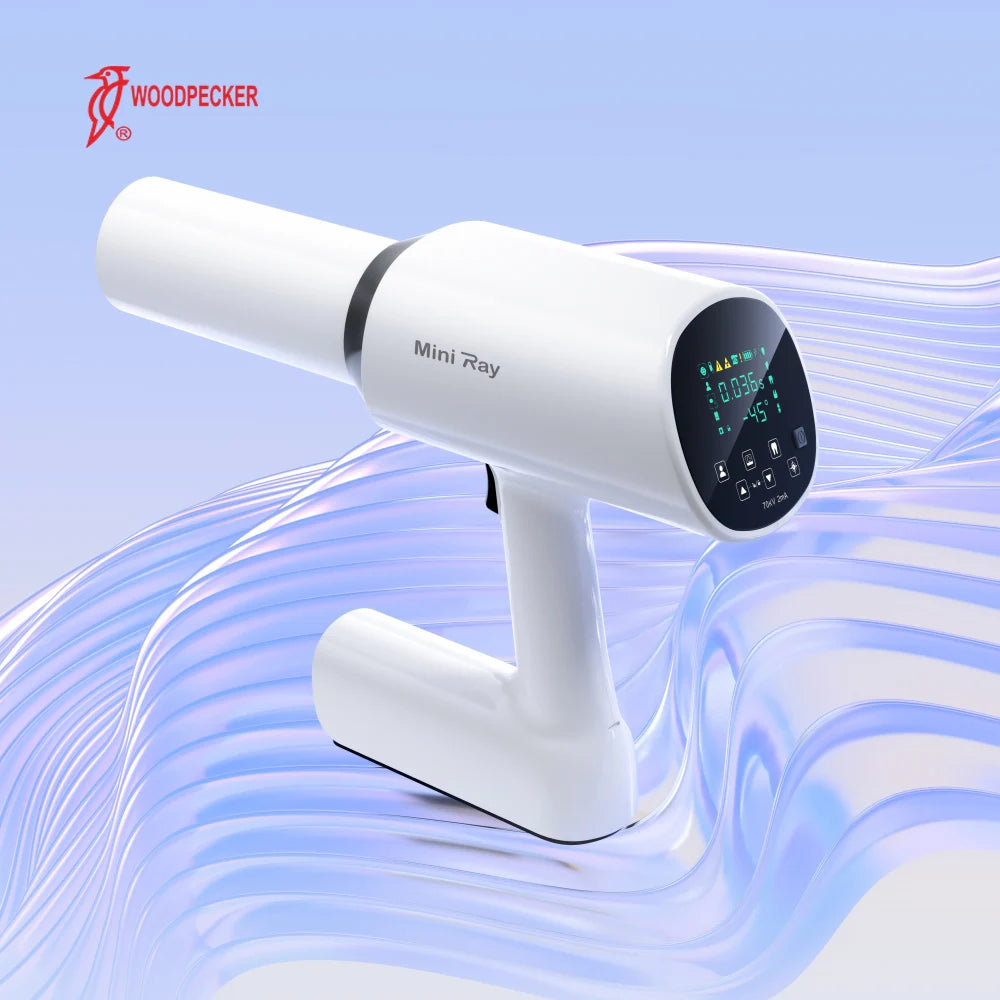

Mini Ray
Power Meets Clarity
10 Reasons to Choose MINI RAY

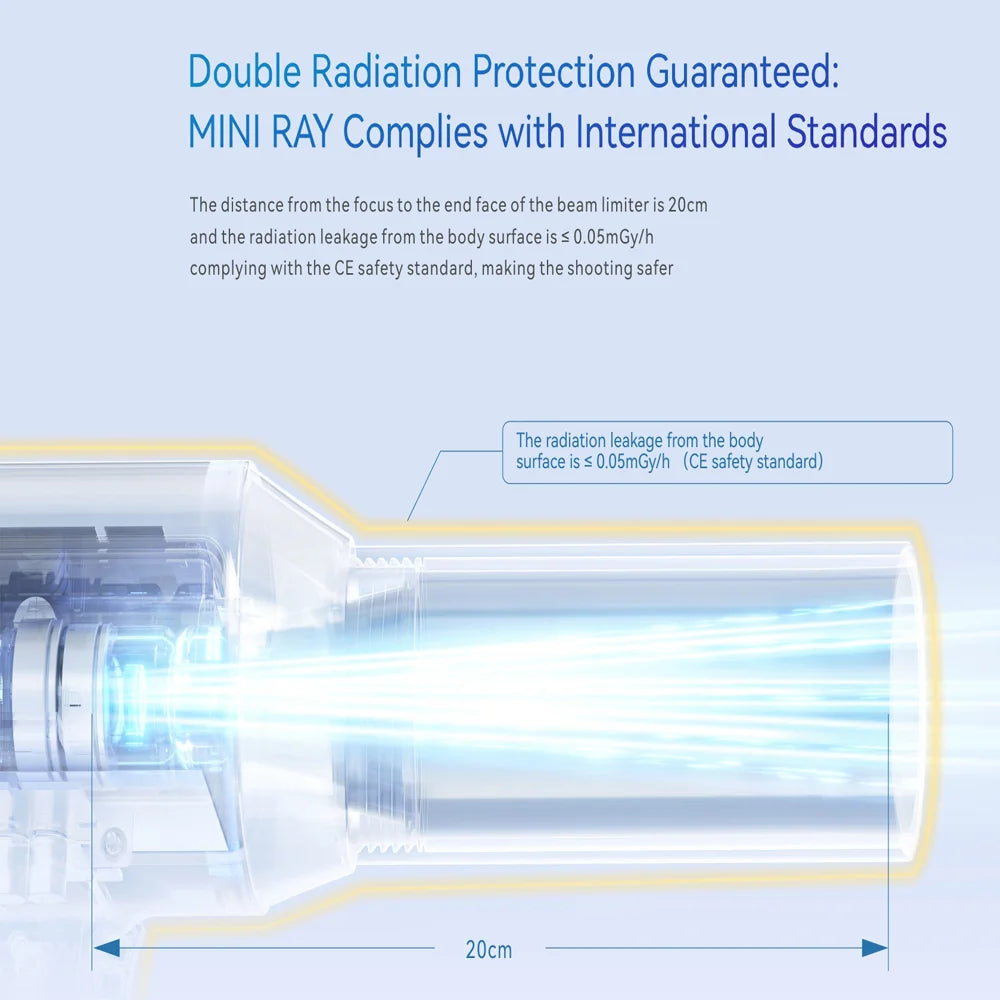

Double Radiation Protection Guaranteed:
MINI RAY Complies with International Standards
- The distance from the focus to the end face of the beam limiter is 20cm and the radiation leakage from the body surface is s 0.05mGy/h.
- Complying with the CE safety standard,making the shooting safer.
The radiation leakage from the body surface is s 0.05mGy/h (CE safety standard)
Oil tank and beam limiter use 99.9%pure lead shielding to maximize the protection against radiation leakage.
Efficient Handling of Different Shooting Situations
- 70Kv tube voltage for excellent X-ray penetration.
- 2mA tube current for millisecond-level exposure to avoid shadow(Blurred Images caused by unsteady shooting).
- 140W output power to meet diverse clinical needs.
Powerful USA"CHIP"
Refreshes the Imaging Technique
- Advanced chip enables high-frequency close-loop control for stable output.
- Reduces the impact of low battery on image quality.
- Delivers a worry-free shooting experience.
Long-lasting Battery for Uninterrupted Performance
- 2500mAhx3S High-capacity lithium battery
- 500+Shots on a full charge
- 2h Fast full charge
Get Accurate X-Ray Images Every Time with Sensitive Sensor
- USA angle sensor for real-time display of holding angle
- Shooting angle can be calibrated as per patient posture
- Optimal shooting angle ensures optimum imaging quality
Durable and Dependable
- 60,000+Exposure times.
- High-quality high-frequency ray tube for longer service life.
Essence in the Tiniest Details
- 0.4mm Focus for more focused x-ray release
- Helps to present clearer high-resolution images

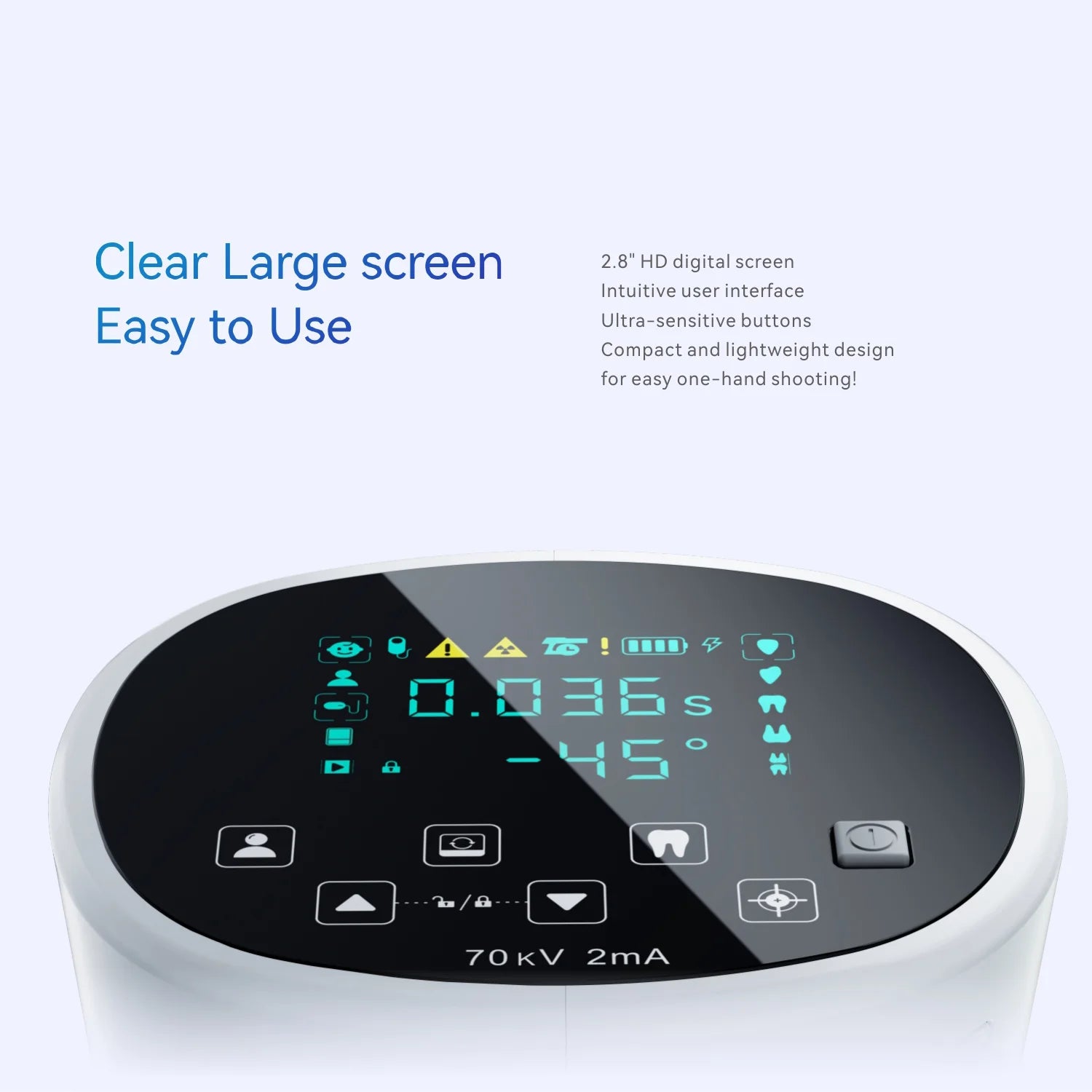

Clear Large screen Easy to Use
- 2.8"HD digital screen
- Intuitive user interface
- Ultra-sensitive buttons
- Compact and lightweight design for easy one-hand shooting!

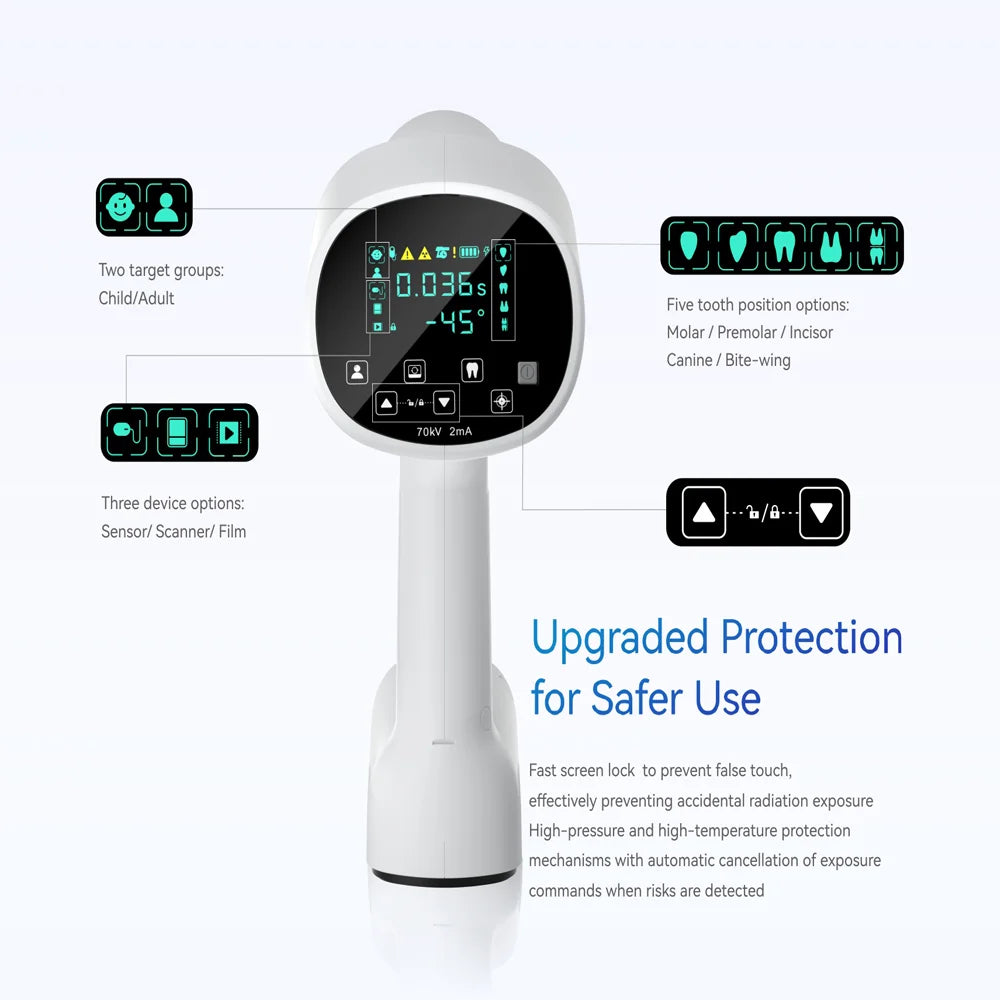

5+3+2,Fitting to Diverse Shooting Needs with Ease
- Two target groups:Child/Adult
- Five tooth position options:Molar/Premolar/Incisor/Canine/Bite-wing
- Three device options:Sensor/Scanner/Film
Upgraded Protection for Safer Use
- Fast screen lock to prevent false touch,effectively preventing accidental radiation exposure.
- High-pressure and high-temperature protection mechanisms with automatic cancellation of exposure commands when risks are detected.
Embracing a new,high-energy era
In comparison to traditional Power Frequency AC machine,the Mini Ray is a High Frequency DC machine with superior performance and produces more stable X-rays.
Parameters:
- Tube voltage:70kV
- Tube current:2mA
- DC high frequency
- Battery capacity:2500mAh*3S
- Size/mm:338*112*247
- Weight:2.2Kg
