Product Details
Buyer friend, hello!
Since this product is in Chinese, please read the introduction carefully. If you cannot accept the Chinese version, please do not buy it. The following is a physical demonstration of the machine.But we will deliver the manual in English.
Upgraded star product

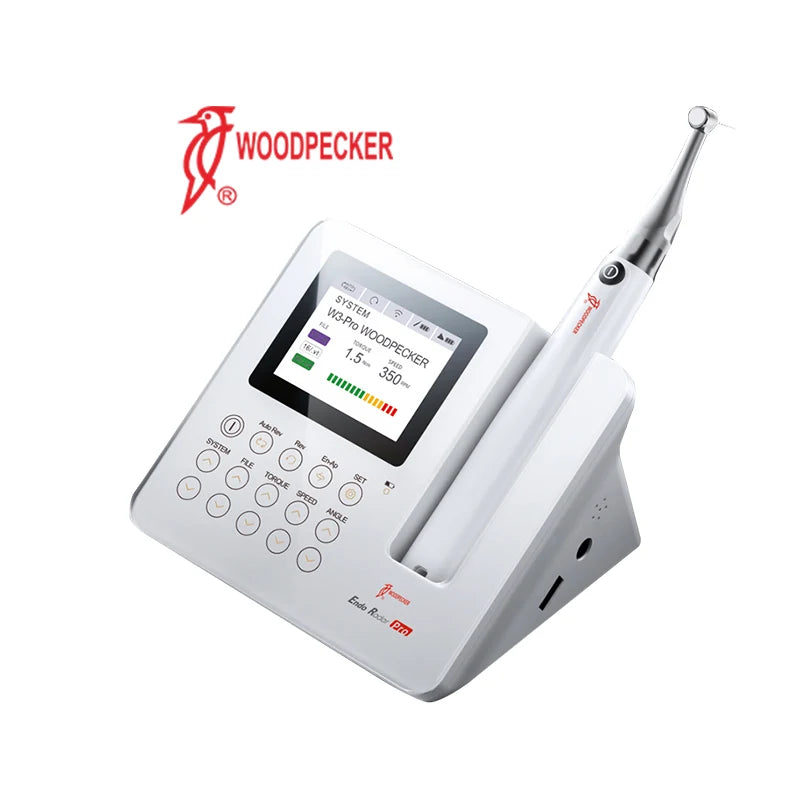

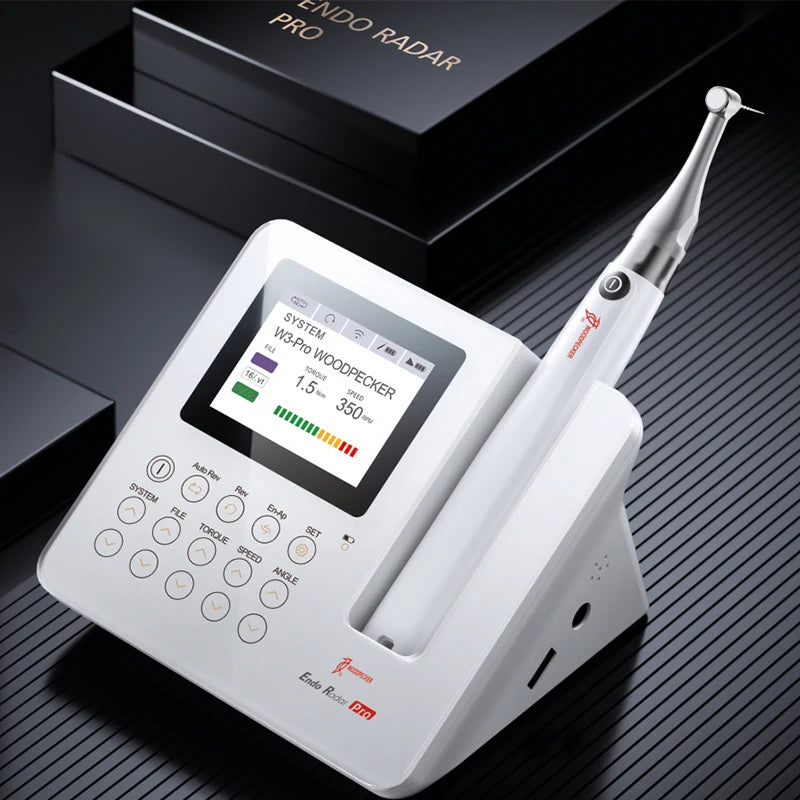

Brushless Endo Motor with two-in-one function and compact handpiece.
Main features
- Two-in-one function enables the root canal preparation with simultaneous length control.
- Brushless motor.
- Super-mini handpiece.
- Cordless
Two-in-one function
①Root canal preparation with simultaneous length control
②Length determination only
A. Auto start and stop
Automatically start when the file is inserted into the canal,and stop roting when it leaves the canal.
B. Auto apical reverse and auto apical stop
Automatically reverse and stop when the file reaches the apical stop.
C. Auto apical slowdown
The file slows down as it gradually approaches the apical stop.
Ultra-compact and cordless handpiece enables better hand feeling
- Handpiece diameter reduced by 2mm,circumference reduced by 7mm
- Control the handpiece with wireless signal,without the restraint of tail cord
Super-mini contra-angle
The contra-angle is only 8mm in diameter and 9.7mm in height
- Head and neck of ordinary contra-angle
- Head and neck of Woodpecker super-mini contra-angle
- Ensure low speed and stable rotation under high torque.

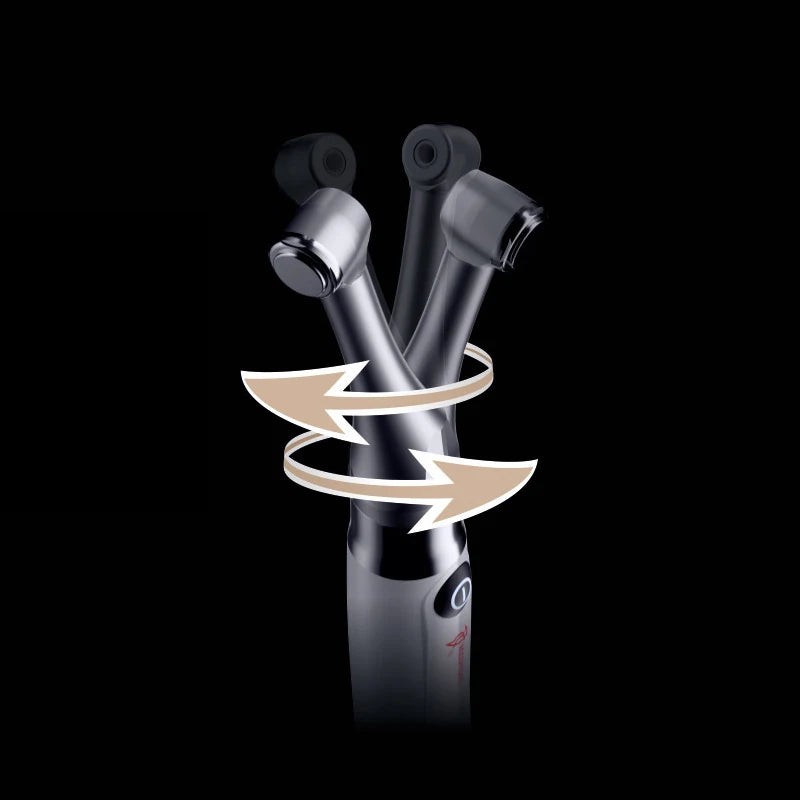

The contra-angle can be rotated directly without being pulled out,which is convenient for the preparation of different teeth.
High performance brushless motor

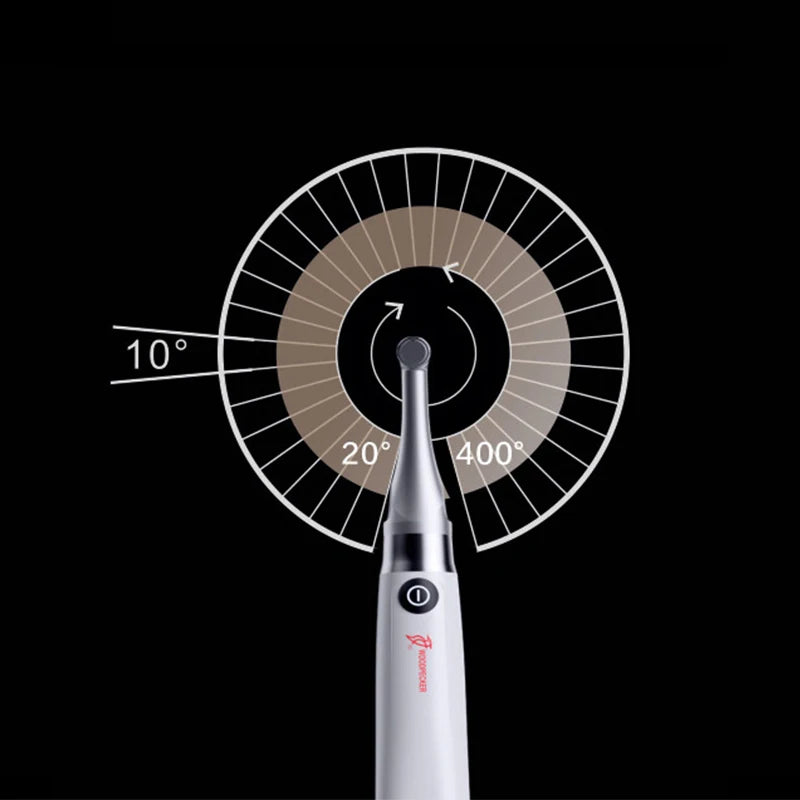

- Adjustable reciprocating angle with 10° interval
- Adjustment range of forward and reverse reciprocating angle: 20° - 400
- ATR mode: After the preset torque is reached, the file will reciprocate according to the set angle.
High-performance brushless motor with high torque,high speed and fast response.
Speed: 100-2500 rpm Torque: 0.4-5.0 N.cm
High-performance brushless motor for low wear, lowheat and longer service life.
Battery life:
Battery life of brushless motor= battery life of brush motor x10

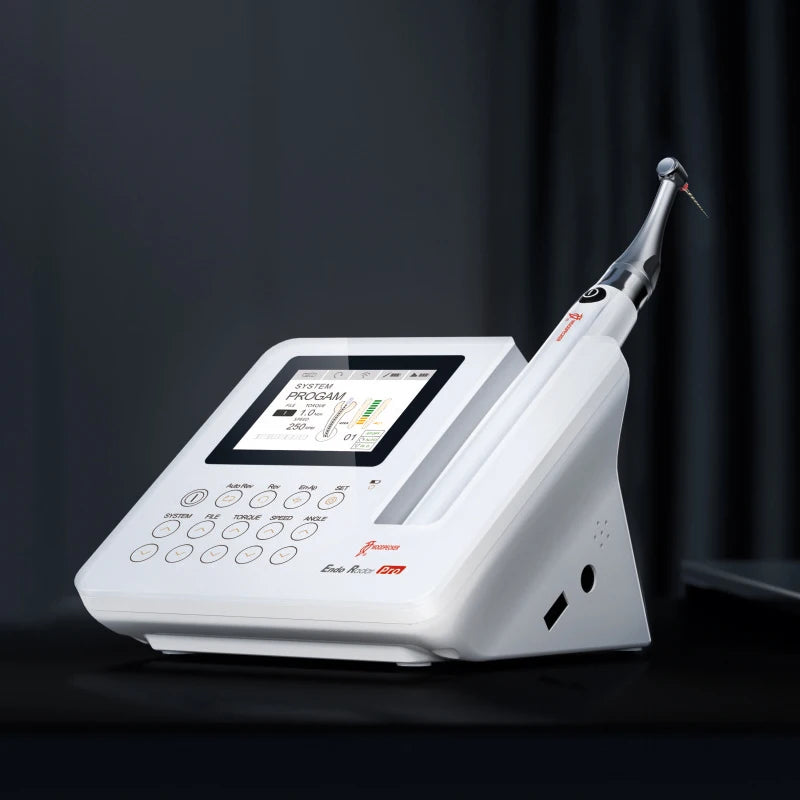

All touch button design HD LCD screen
●Touchable smart panel enables comfortable hand feeling and easy cleaning.
●The luminous panel guarantees easy identification of buttons.

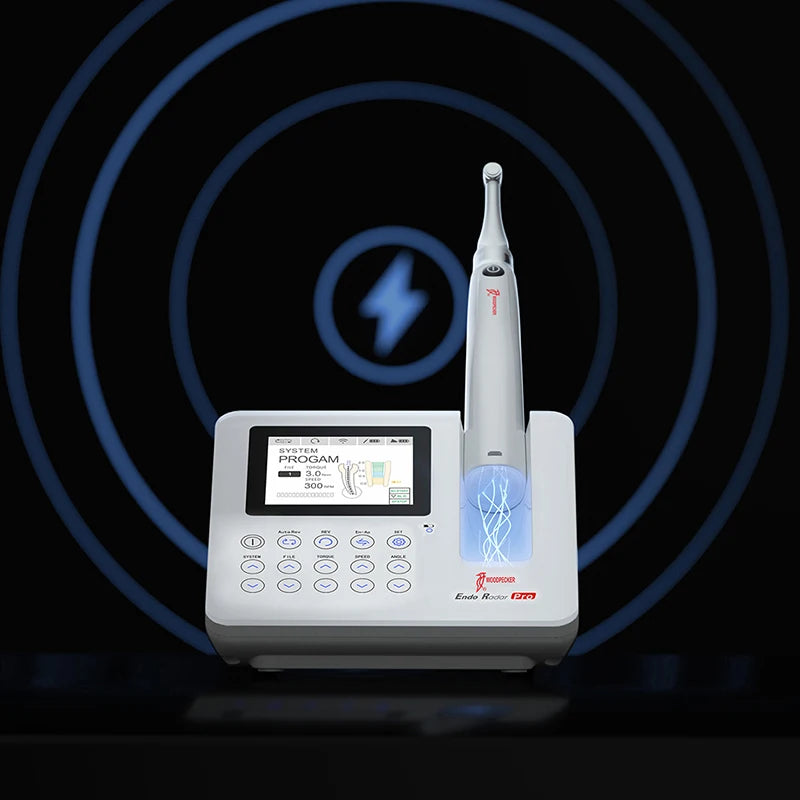

Wireless charging for longer endurance
●Built-in 1200mAh lithium battery in the handpiece enables wireless charging.
●2600mAh large capacity battery built in the base.
●The handpiece can be charged when placed on the main unit, enabling easy use and long durability.
●The use of the machine is not affected by power failure.
●The brightest Endo Motor in the dark.
Built-in 11 user-defined modes to adapt to mainstream file systems
Easy to choose and easy to operate
Operation steps (take W3- Pro file as an example)
1. Use # 10 stainless steel K file to probe and negotiate the root canal, and conduct preliminary determination of working length;
2. Use cavity access file 17/.12 to pre - enlarge the coronal 1/3 of the root canal and remove the ferrule at the root canal orifice;
3. Determine the working length and confirm the patency of the root canal;
4. Use glide path file 12/. vt to negotiate and enlarge root canal access;
5. Use glide path file 16/.vt to negotiate and enlarge root canal access;
6. Use file 18/.05 to negotiate the root canal to the working length by means of "brushing" and' pecking ;
7. Use file 25/ .06 to shape the root canal to the working length by means of "brushing" and "pecking";
8. Use file 35/.04 to shape the root canal to the working length by means of ' brushing " and' pecking" .
Consciously use the"brushing" method to enlarge the lateral space of the root canal to ensure safer root apexpreparation; consciously use the"pecking"method to avoid apical deviation of root canals more effectively.
