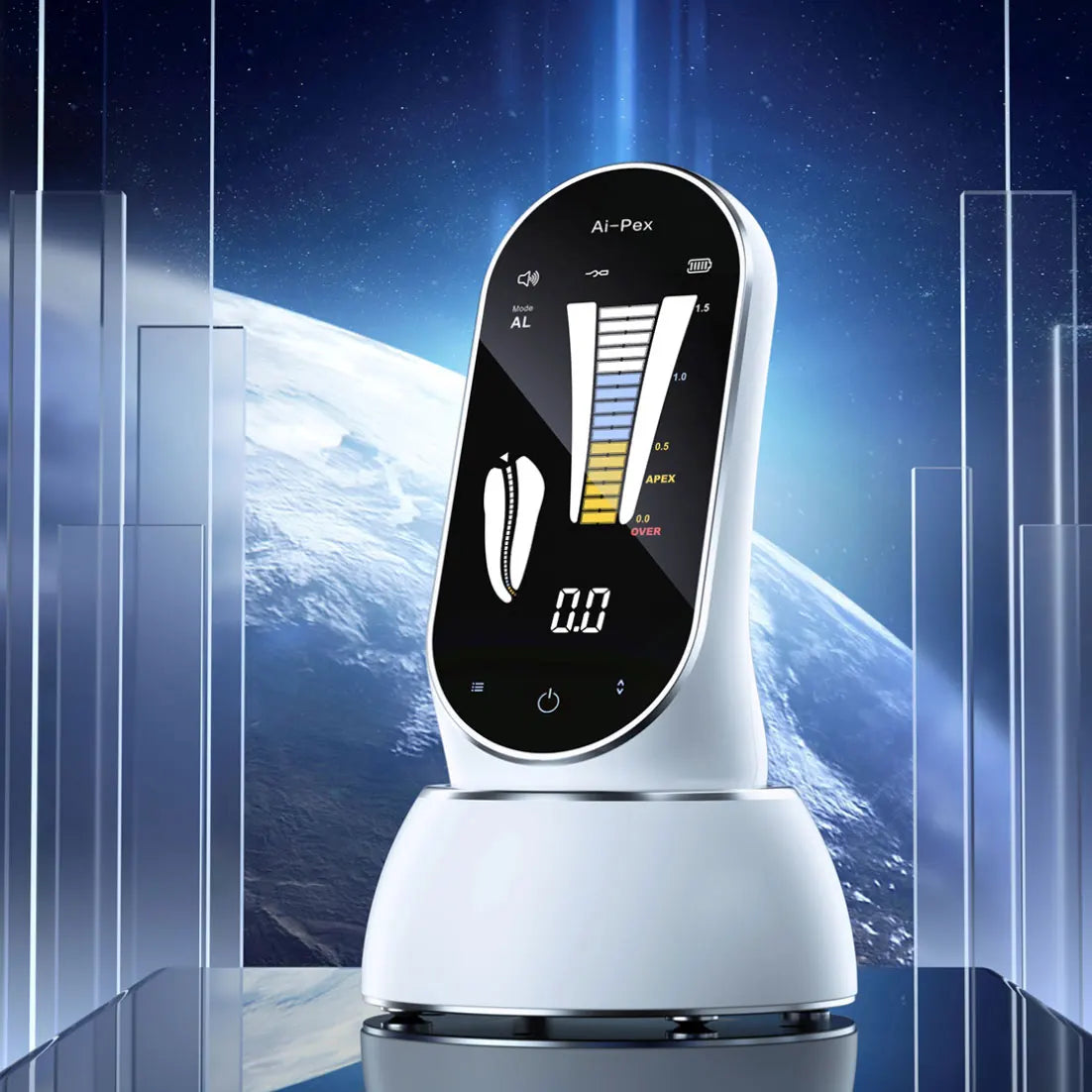

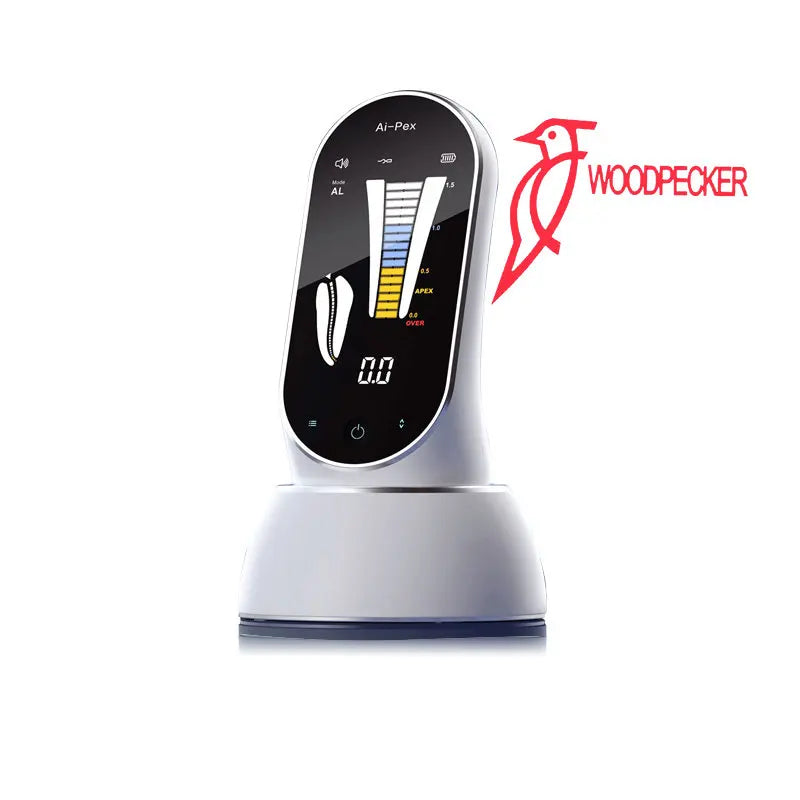

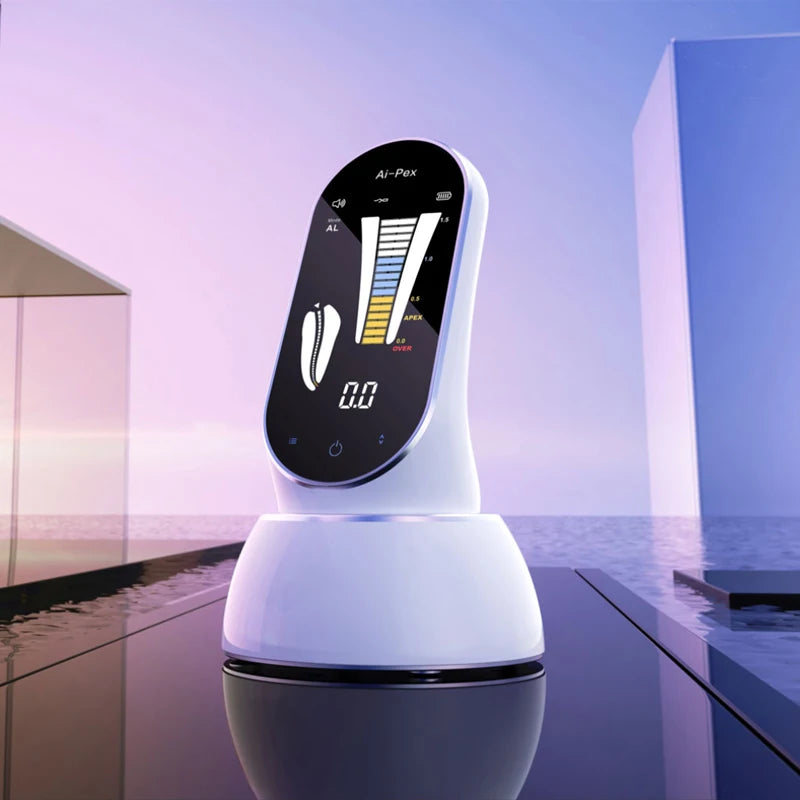

Woodpecker Ai-Pex Dental Apex Locator

Woodpecker Ai-Pex Dental Apex Locator

$521.50
$0.00 $521.50
Promoção Esgotado
Tributos incluídos. Frete calculado no checkout.
Ver informações completas

Product Details


Main technical parameters

  1. Battery: 3.7V/2000mAh (Model: 18500)

  2. Adapter (Model: DJ-0500100-A5/ADS-6AM-06N 05050):

  3. Input: ~100V-240V 50Hz/60Hz 0.4A MAX

  4. Output: DC5V/1A

  5. Consumption power: ≤0.5W

  6. Screen: 3.8'' LCD


Product introduction

1. The features of this equipment are:
a) Equipped with a color LCD screen, the image is clear, and a variety of colors clearly indicate the trajectory of the needle in the root canal;
b) Based on multi-frequency independent network measurement technology, automatic calibration ensures the accuracy of measurement;
c) File clips, lip hooks, root test probes and pulp vitality probes can be sterilized at high temperature and high pressure to avoid cross infection;
d) The battery is rechargeable, and it is not necessary to replace the battery repeatedly.
e) It can be rotated 360°, which is convenient to adjust the viewing angle.
2. Product performance structure and composition
Ai-Pex root canal length measuring instrument consists of main unit, measuring wire, lip hook, file clip, root measuring probe, pulp vitality probe and power adapter.
3. Scope of application
It is used to assist in determining the working length of the root canals of various types of teeth during root canal treatment in dentistry, and testing the pulp vitality.

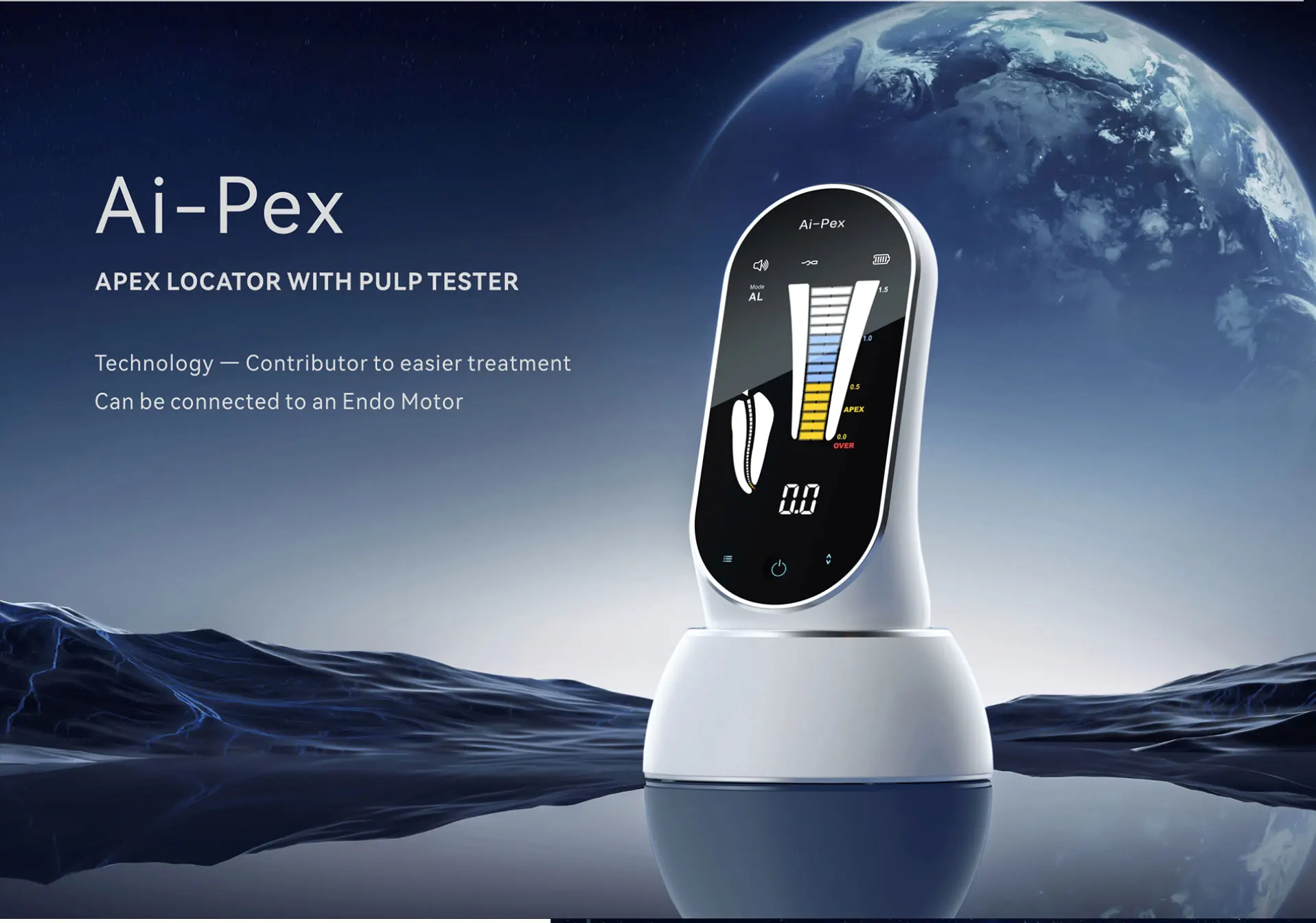

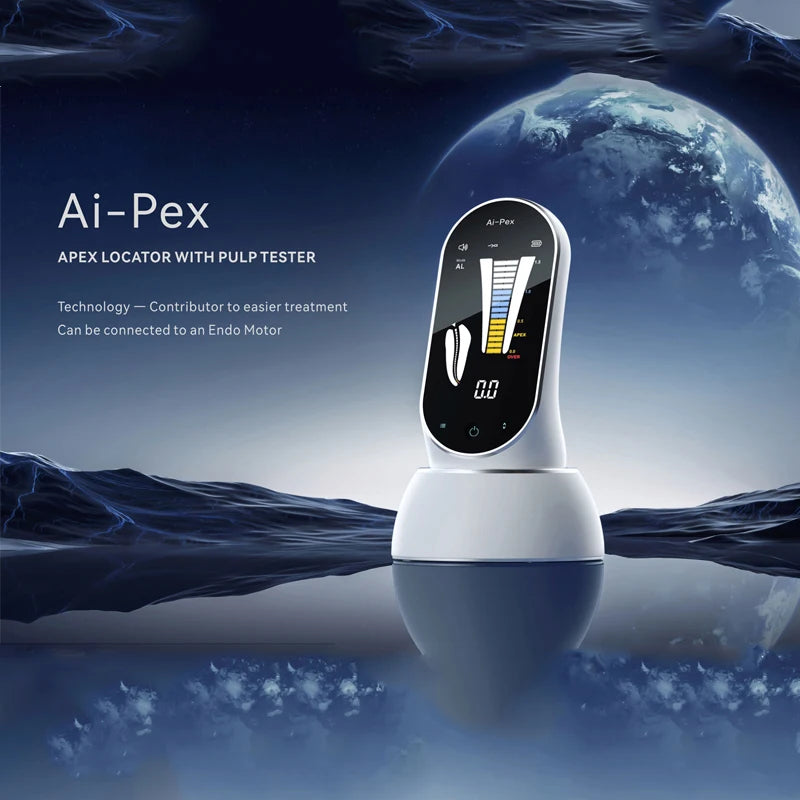

Ai-Pex
APEX LOCATOR WITH PULP TESTER
Technology -Contributor to easier treatment Can be connected to an Endo Motor

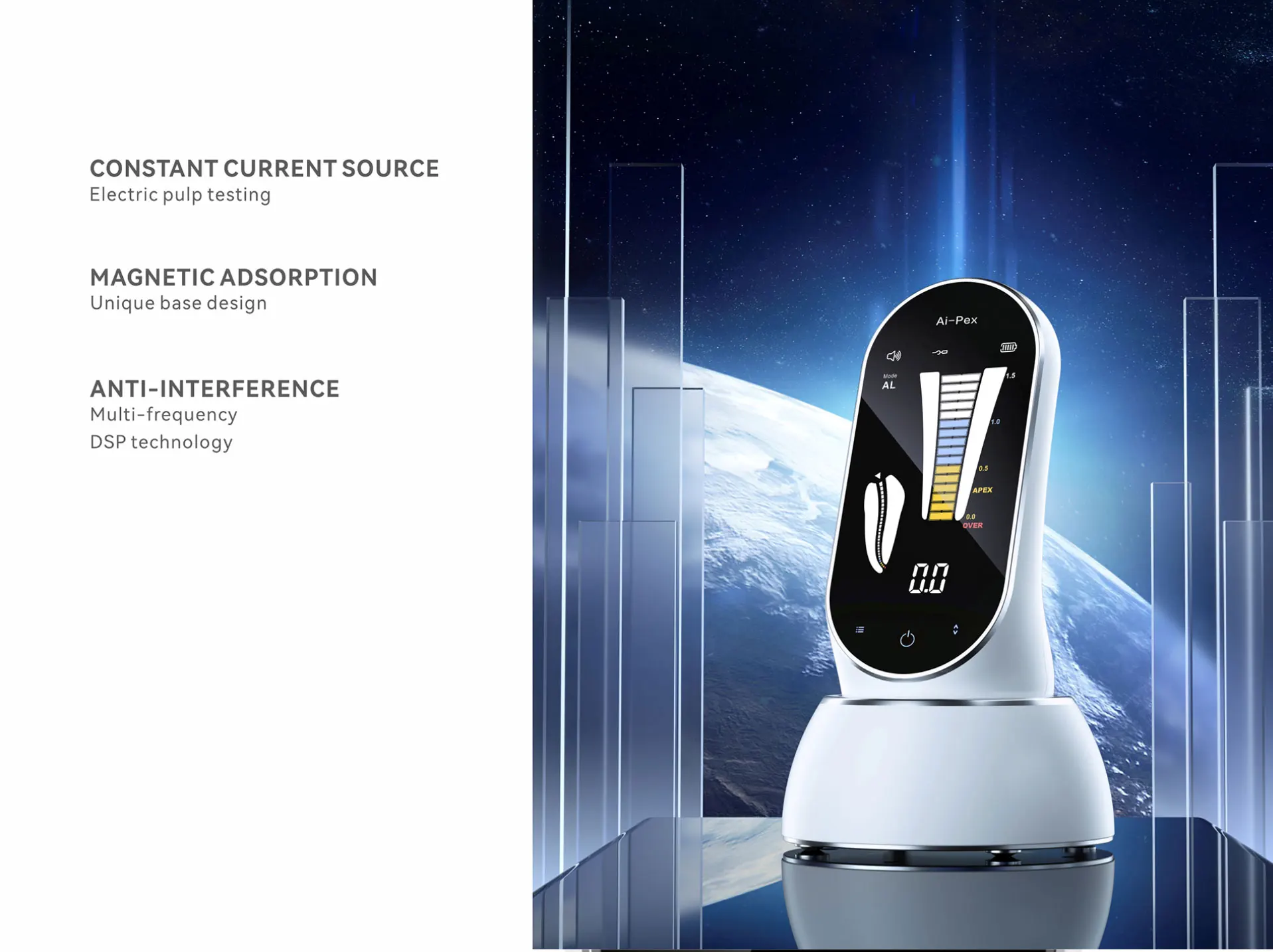

CONSTANT CURRENT SOURCE
  • Electric pulp testing
MAGNETICADSORPTION
  • Unique base design
ANTI-INTERFERENCE
  • Multi-frequency
  • DSP technology

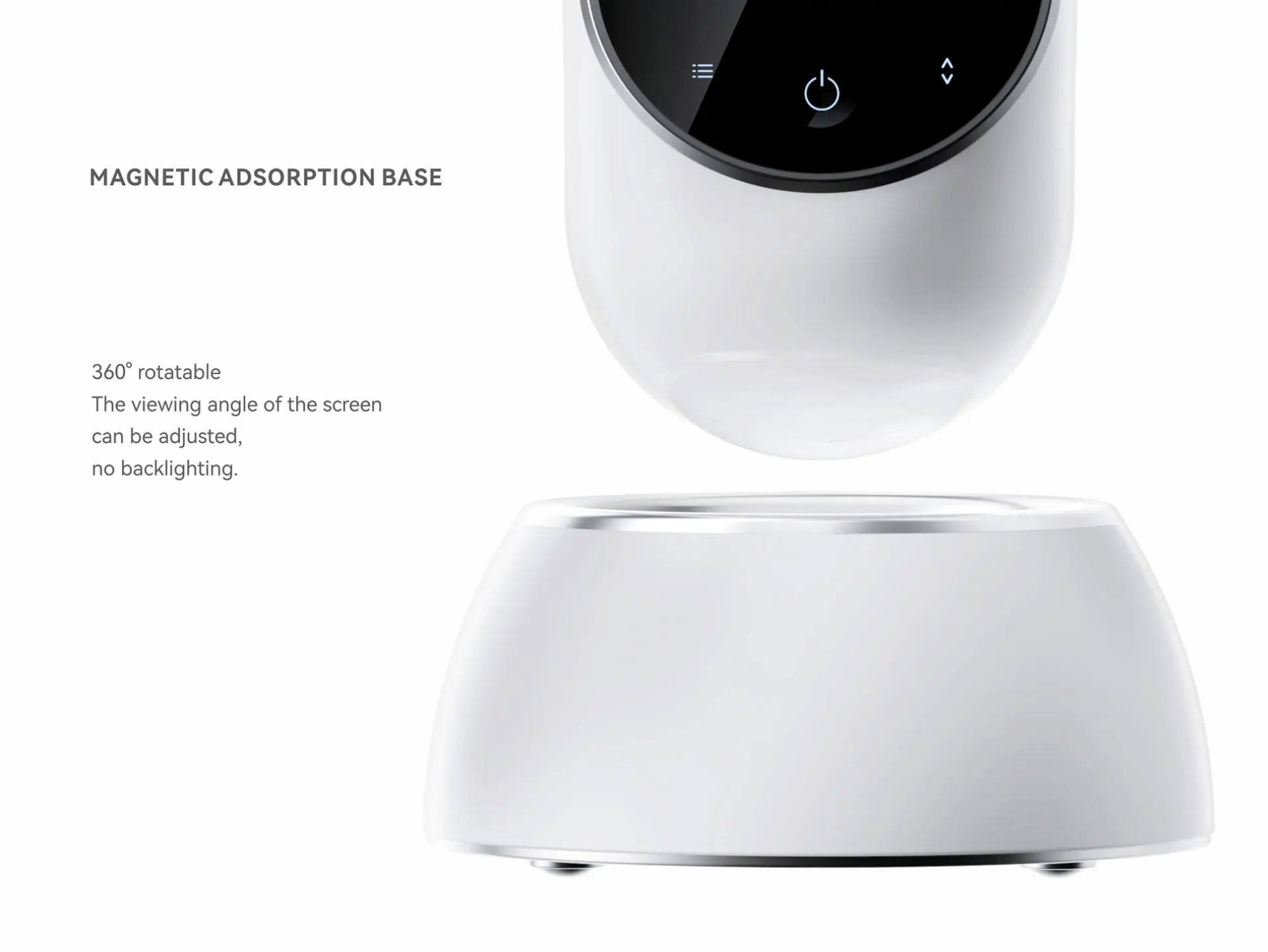

MAGNETICADSORPTION BASE
  • 360° rotatable.
  • The viewing angle of the screen can be adjusted,no backlighting.

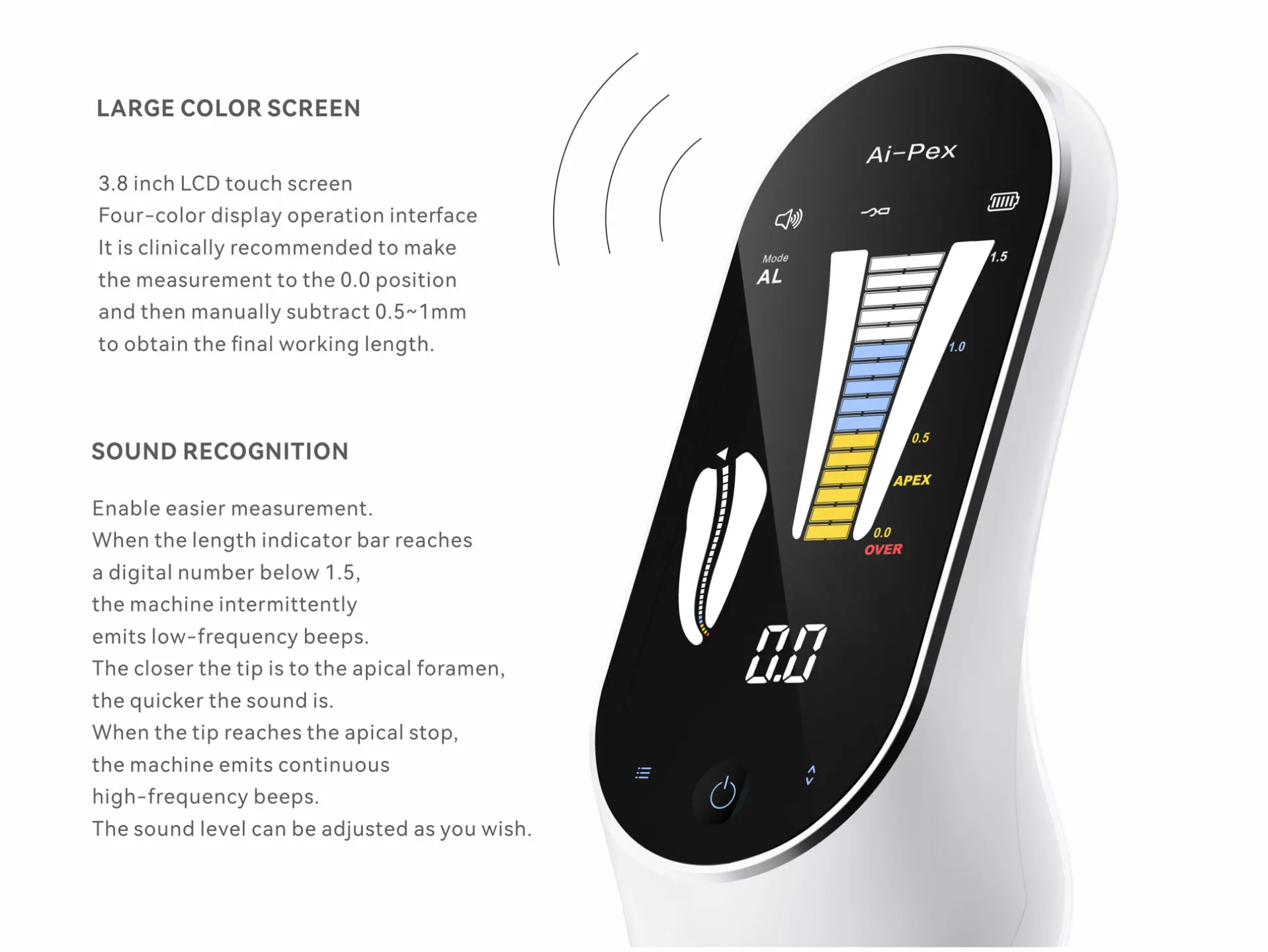

LARGE COLOR SCREEN
  • 3.8 inch LCD touch screen.
  • Four-color display operation interface.
  • lt is clinically recommended to make the measurement to the 0.0 position and then manually subtract 0.5~1mm to obtain the final working length.
SOUND RECOGNITION
  • Enable easier measurement.
  • When the length indicator bar reaches a digital number below 1.5,the machine intermittently emits low-frequency beeps.
  • The closerthe tip is to the apical foramen,the quicker the sound is.
  • When the tip reaches the apical stop,the machine emits continuous high-frequency beeps.
  • The sound level can be adjusted as you wish.

ROOT CANALLENGTH MEASUREMENT
  • Auto calibration after startup New digital circuit.
  • u.S.central processing chip with DSP processing module 0.1% high precision components.
  • Information processing speed increased by 2.125times.

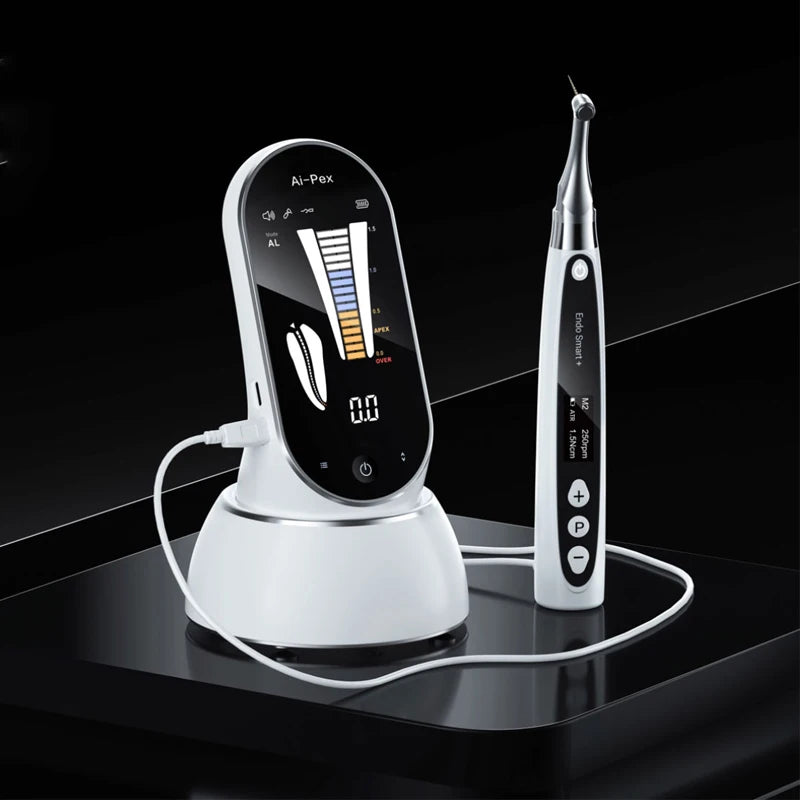

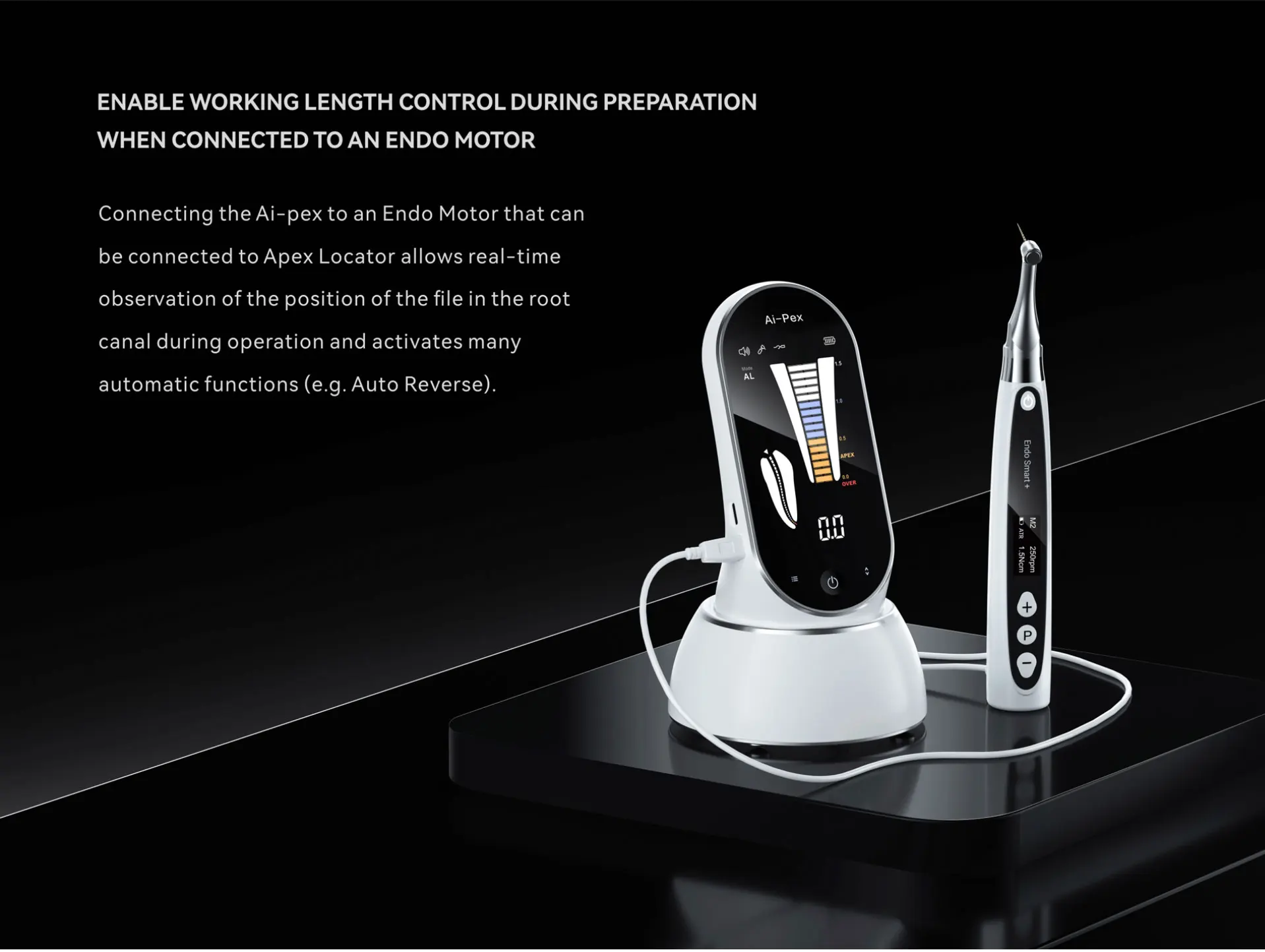

ENABLE WORKING LENGTH CONTROL DURING PREPARATION WHEN CONNECTED TOAN ENDO MOTOR
  • Connecting the Ai-pex to an Endo Motor that can be connected to Apex Locator allows real-time observation of the position of the file in the root canal during operation and activates many automatic functions (e.g.Auto Reverse).

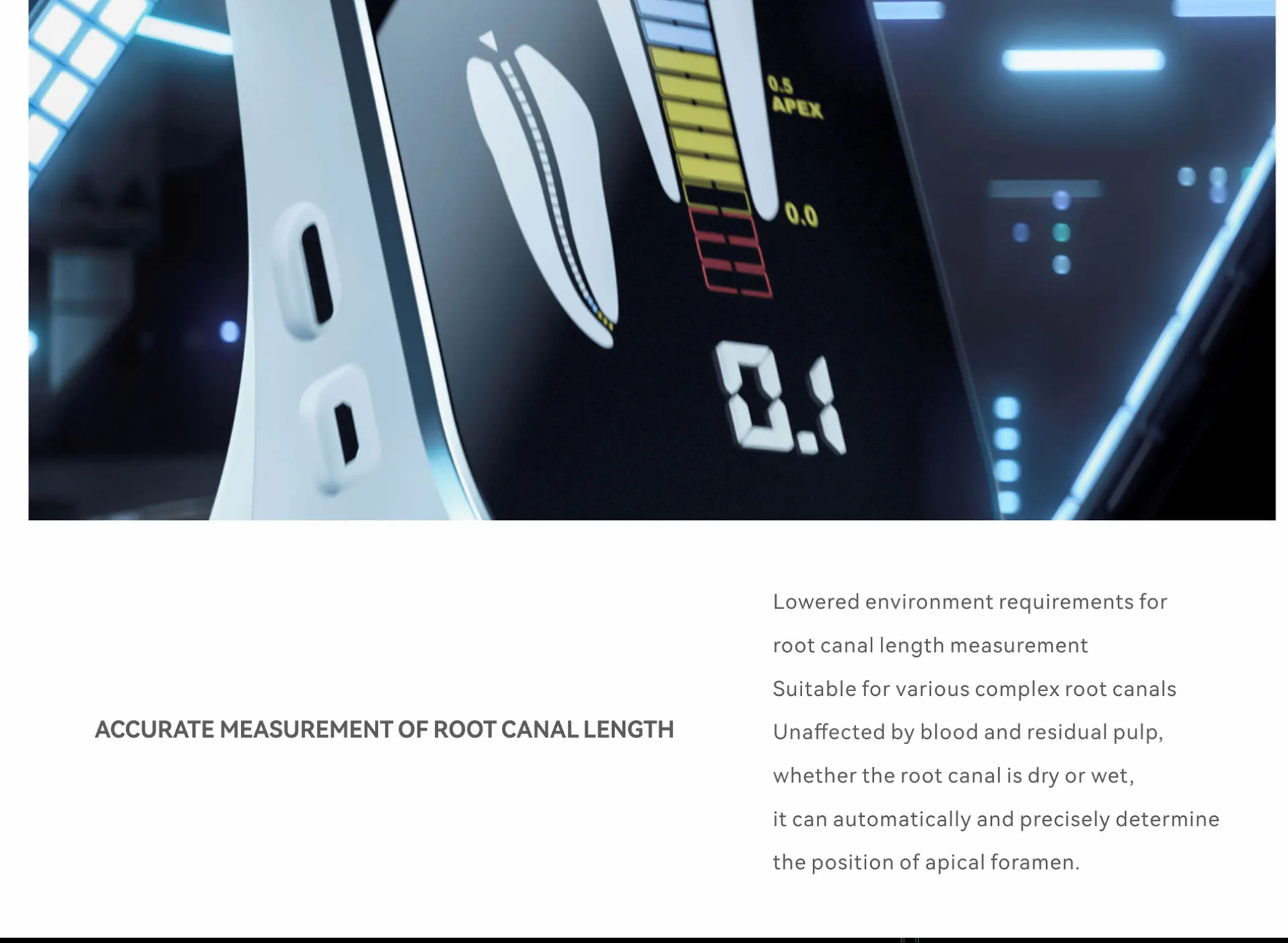

ACCURATE MEASUREMENT OF ROOT CANAL LENGTH
  • Lowered environment requirements for root canal length measurement.
  • Suitable for various complex root canals.
  • Unaffected by blood and residual pulp ,whether the root canal is dry or wetit can automatically and precisely determine the position of apical foramen.

CONSTANT CURRENT SOURCE ELECTRIC PULPTESTING
  • When the clinical need to determine the vitality of the root pulp arises electric pulp test must be used.
  • In the case of thermal pulp test ( cold heat) the cold and heat stimuli can only reach the coronary pulp and cannot test the vitality of the root pulp.
CONSTANT CURRENT ENABLES MORE ACCURATE MEASUREMENT
  • There are two types of electric pulp testers:constant current type and constant voltage type.
  • The constant current type always keeps the current constant during the test while the constant voltage type always keeps the voltage constant.
  • Constant-current electric pulp testers are superior to constant-voltage ones in terms of accuracy in determining pulpal viability and in correlating test values with histopathological classification.

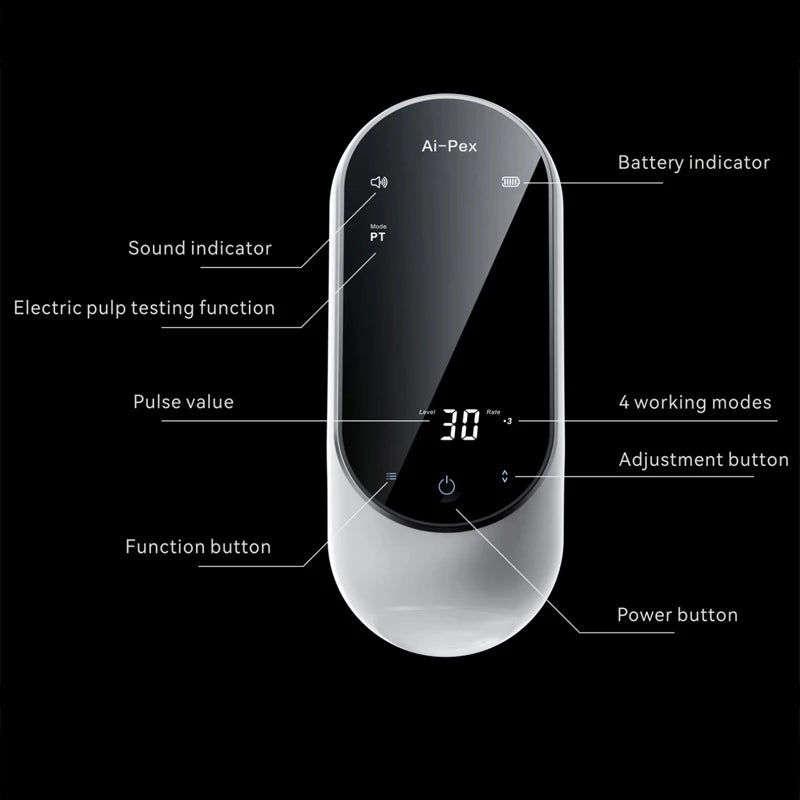

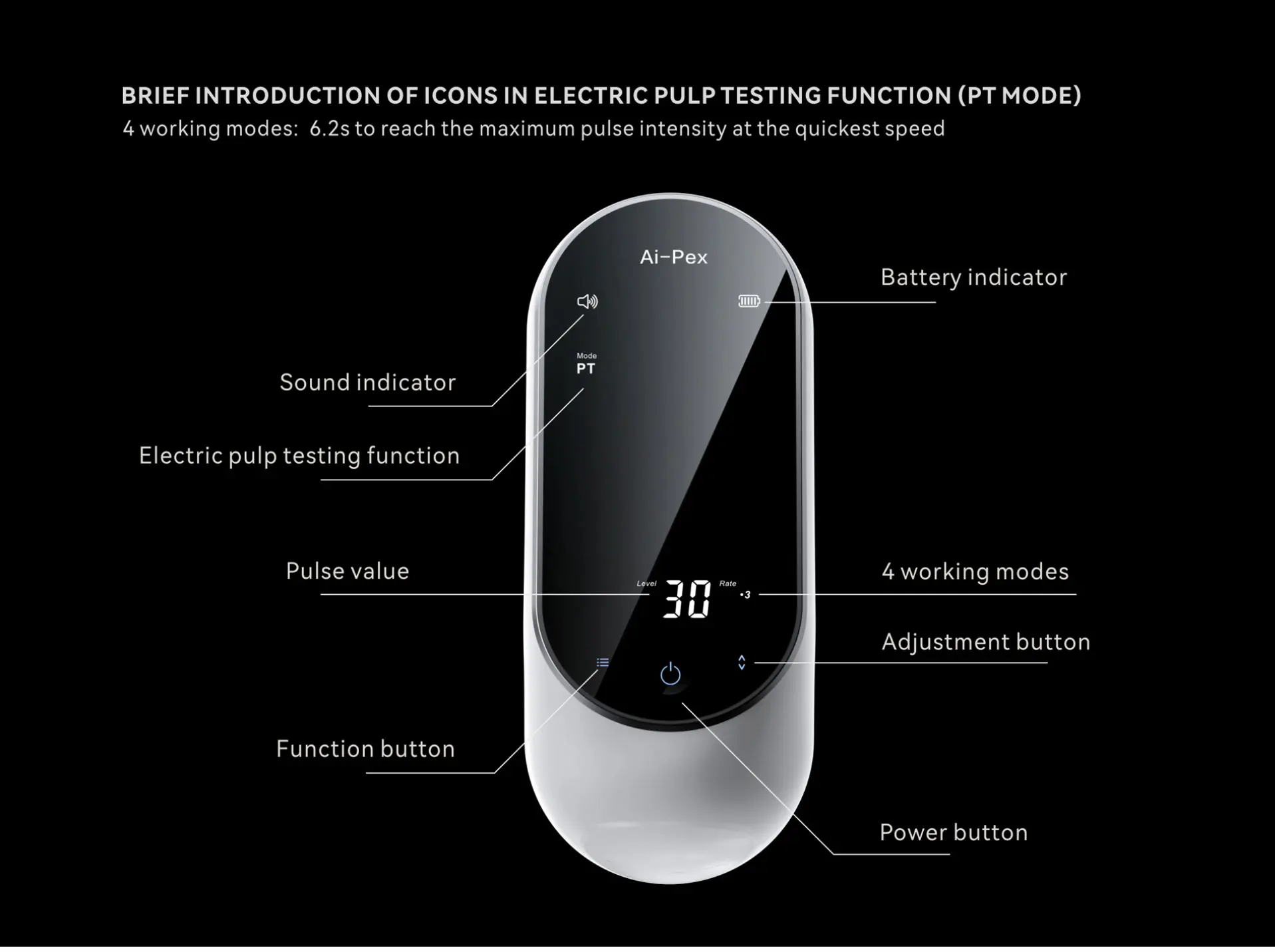

BRIEF INTRODUCTION OF ICONS IN ELECTRIC PULP TESTING FUNCTION ( PT MODE )

4 working modes : 6.2s to reach the maximum pulse intensity at the quickest speed

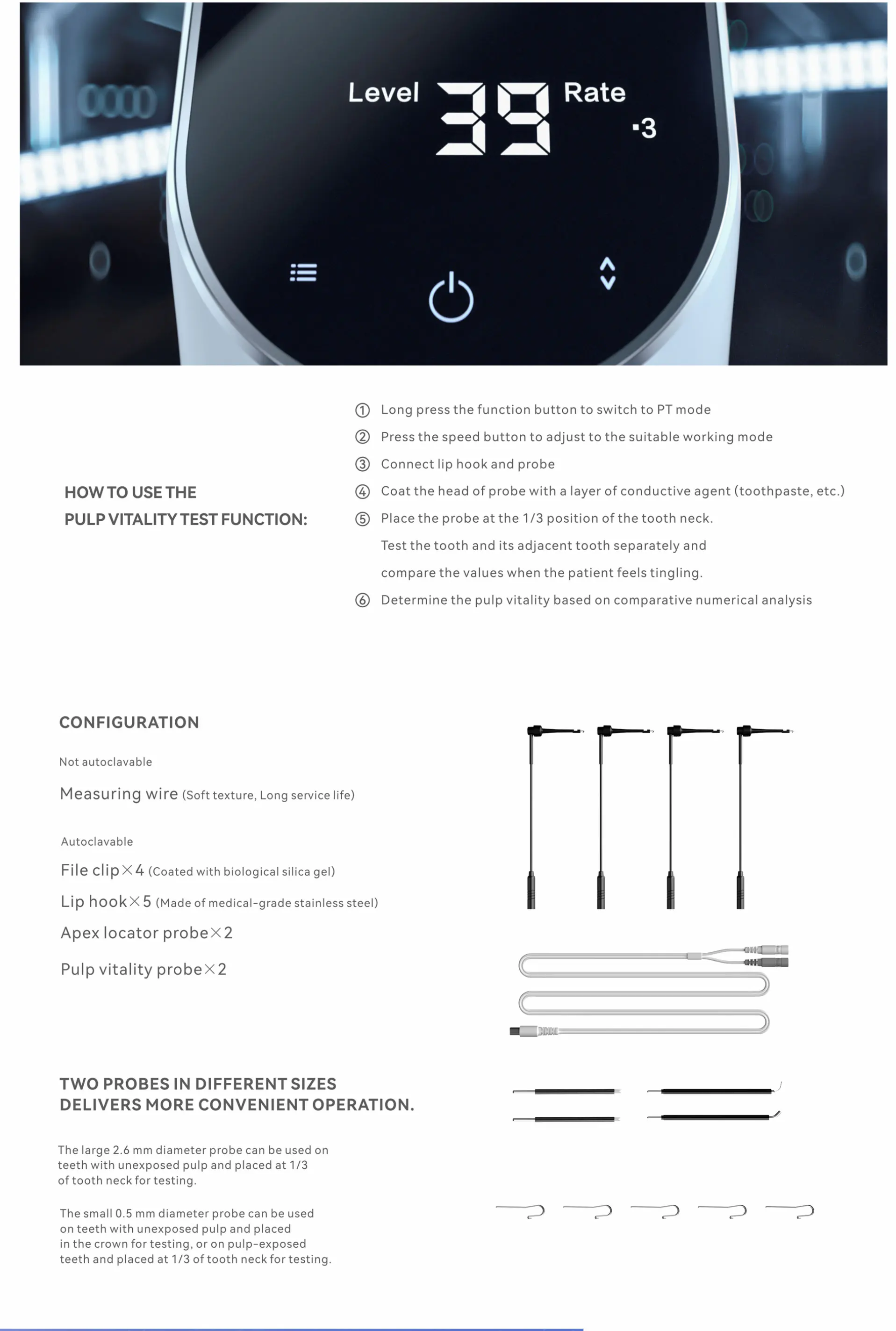

HOW TO USE THE PULP VITALITY TEST FUNCTION
1. Long press the function button to switch to PT mode.
2. Press the speed button to adjust to the suitable working mode.
3. Connect lip hook and probe.
4. Coat the head of probe with a layer of conductive agent ( toothpaste , etc . ).
5. Place the probe at the 1/3 position of the tooth neck.
   Test the tooth and its adjacent tooth separately and compare the values when the patient feels tingling.
6. Determine the pulp vitality based on comparative numerical analysis.

CONFIGURATION
1. Not autoclavable
2. Measuring wire(Soft texture,Long service life)
3. Autoclavable
4. File clip × 4(Coated with biological silica gel)
5. Lip hook × 5(Made of medical-grade stainless steel)
6. Apex locator probe x 2
7. Pulp vitality probe x 2

TWO PROBES IN DIFFERENT SIZES
DELIVERS MORE CONVENIENT OPERATION
  • The large 2.6 mm diameter probe can be used on teeth with unexposed pulp and placed at 1/3 of tooth neck for testing.
  • The small 0.5 mm diameter probe can be used on teeth with unexposed pulp and placed in the crown for testing , or on pulp-exposedteeth and placed at 1/3 of tooth neck for testing.
