Product Details

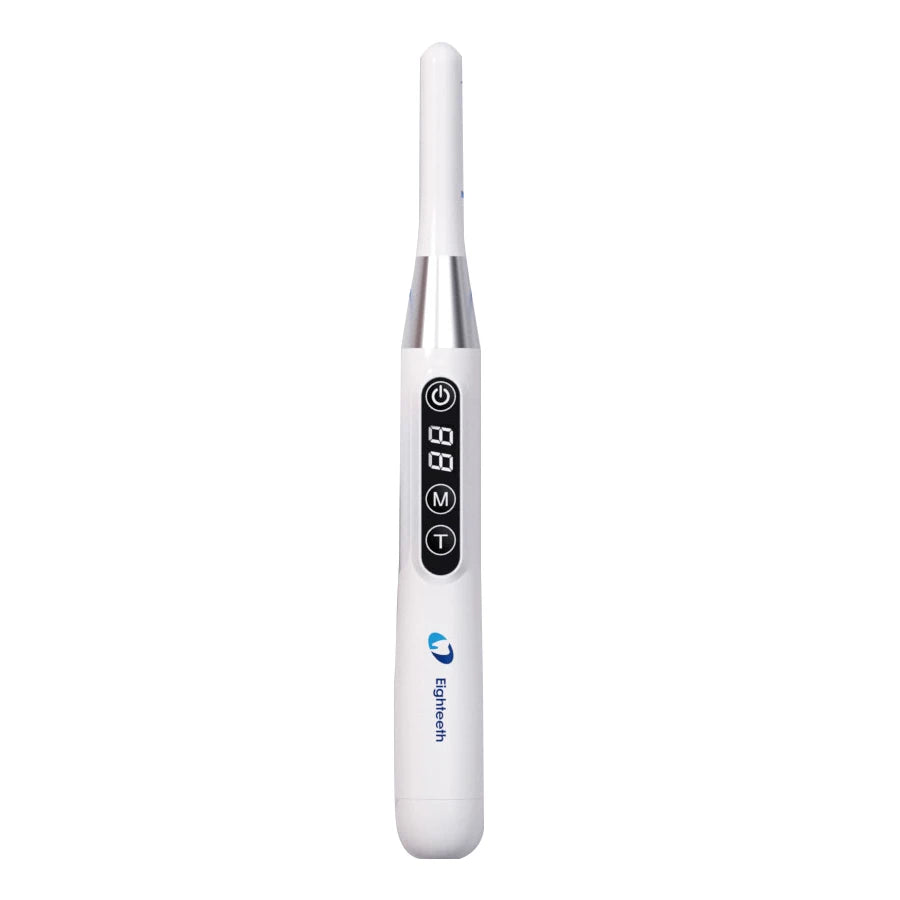

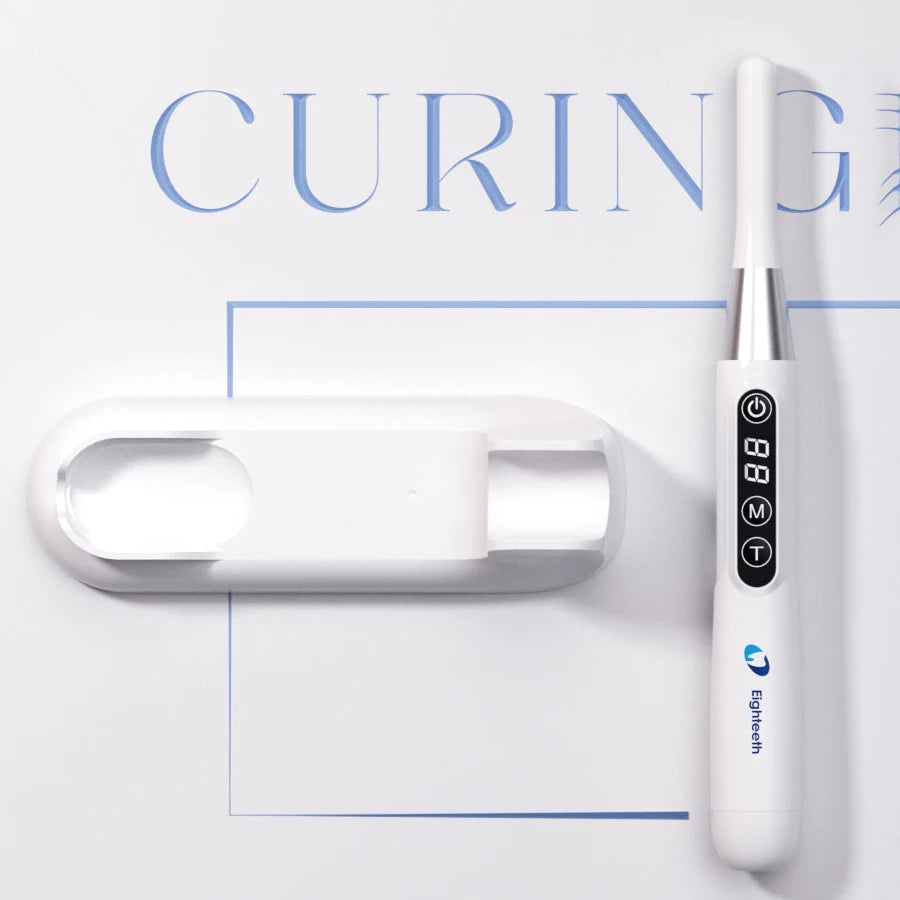

CuringPen-E LED Dental Curing Light
This Light So Bright!

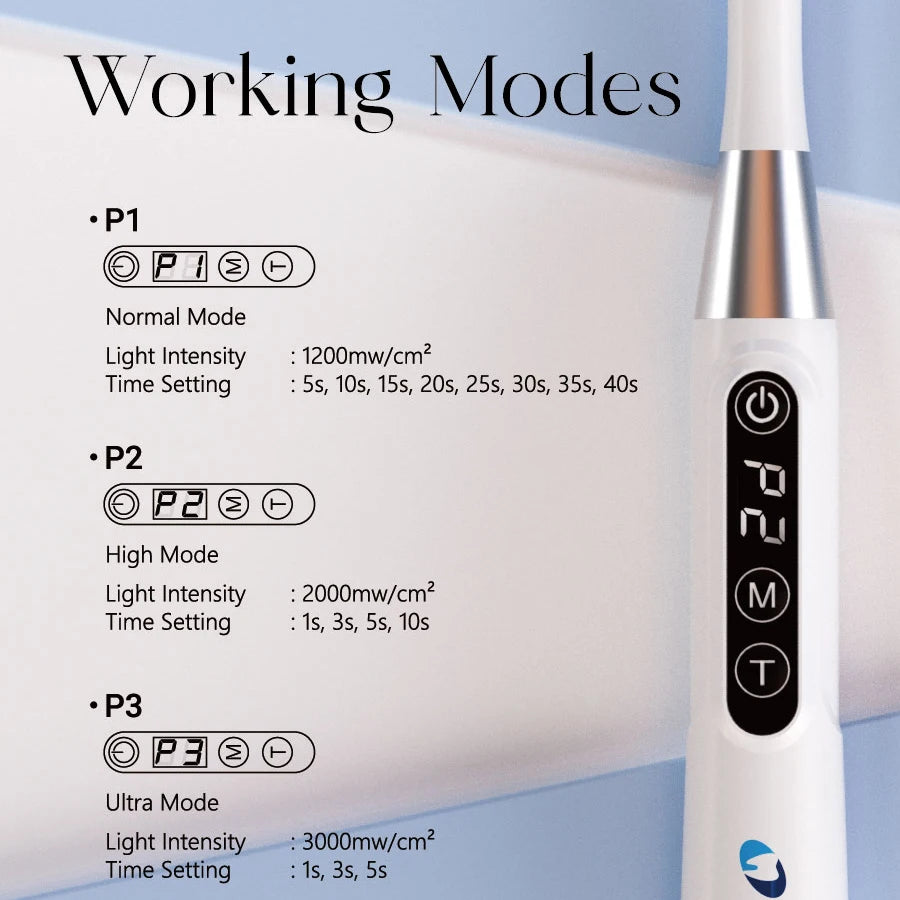

5 Adjustable Working Modes
P1 Normal Mode
Light Intensity: 1200mW/cm²
Time Options: 5s / 10s / 15s / 20s / 25s / 30s / 35s / 40s
P2 High Mode
Light Intensity: 2000mW/cm²
Time Options: 1s / 3s / 5s / 10s
P3 Ultra Mode
Light Intensity: 3000mW/cm²
Time Options: 1s / 3s / 5s

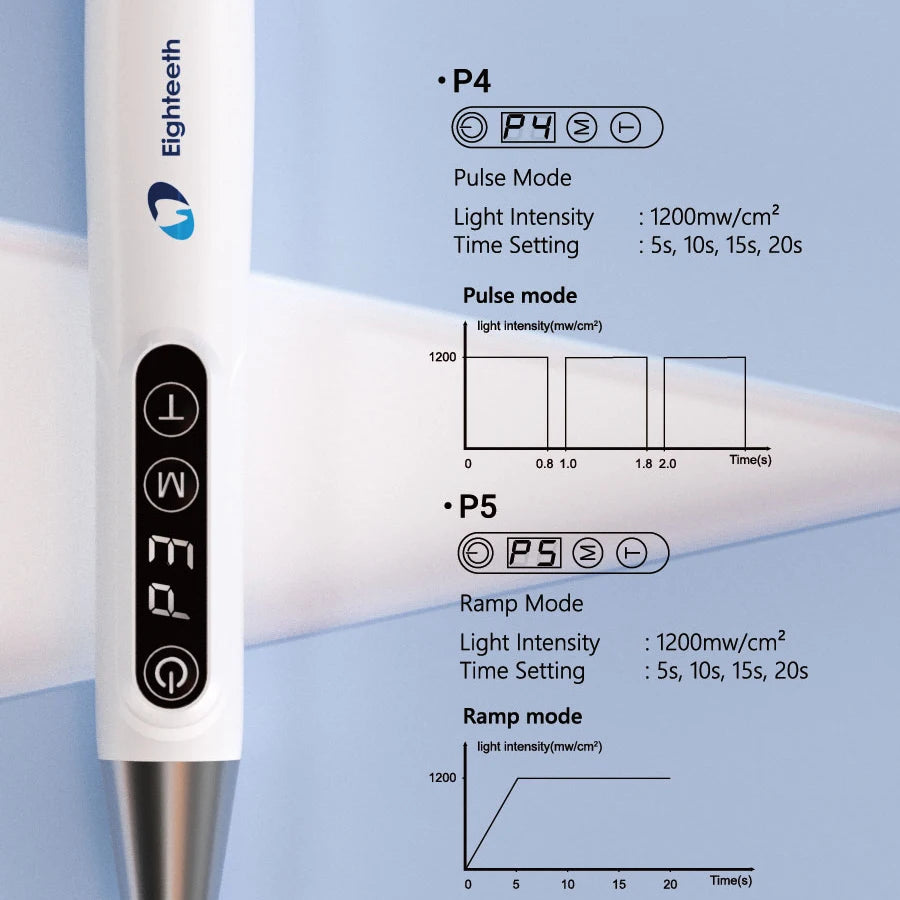

P4 Pulse Mode
Light Intensity: 1200mW/cm²
Time Options: 5s / 10s / 15s / 20s
P5 Ramp Mode
Light Intensity: 1200mW/cm²
Time Options: 5s / 10s / 15s / 20s
Core Advantages

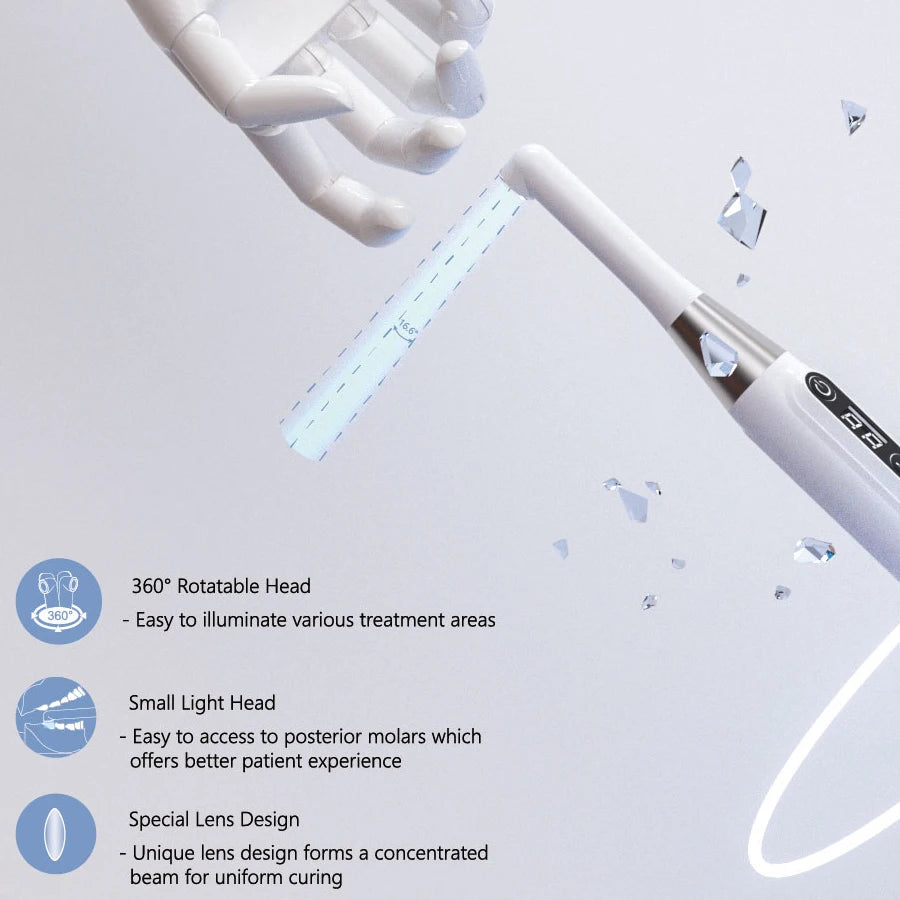

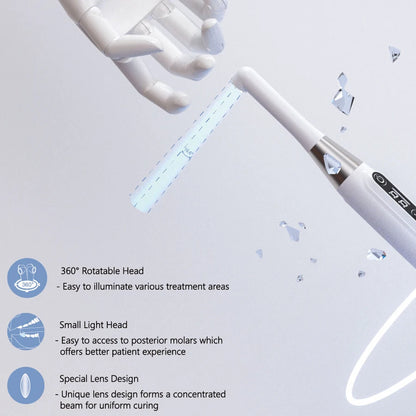

360° Rotatable Light Head
Flexible rotation design allows easy illumination for all kinds of treatment areas.
Compact Small Light Head
Easily reach posterior molars, greatly improving patient comfort during treatment.
Optimized Special Lens Design
Unique lens structure creates concentrated, even light beam for consistent full-surface curing effect.

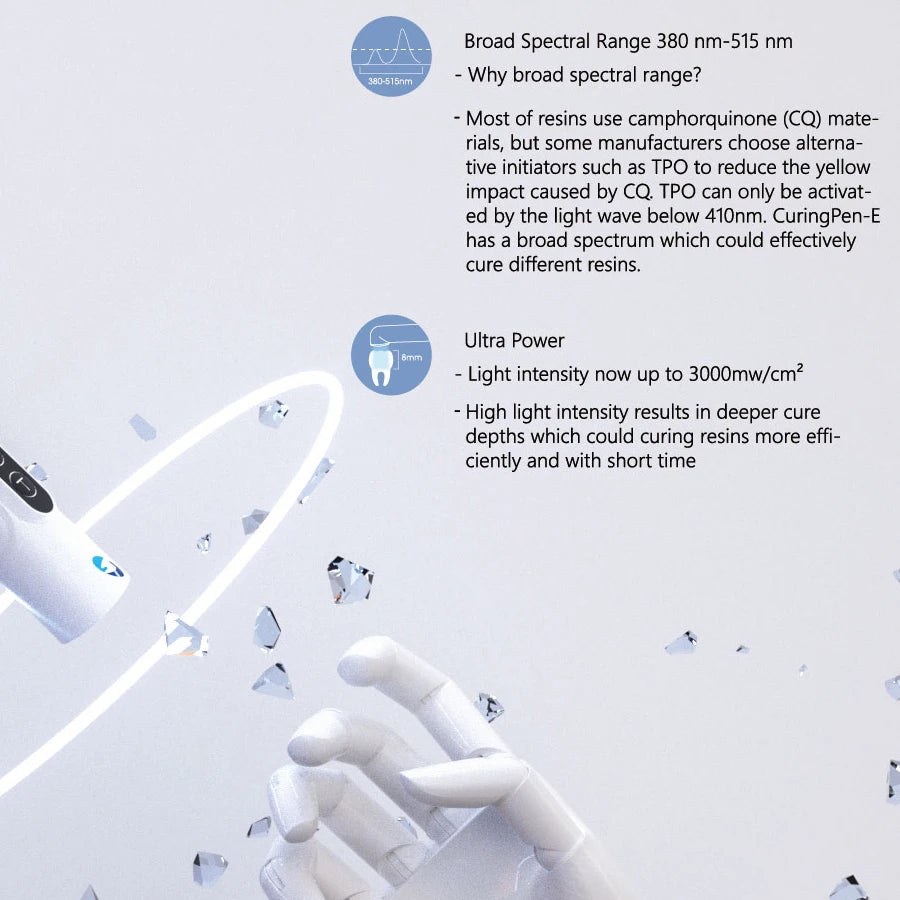

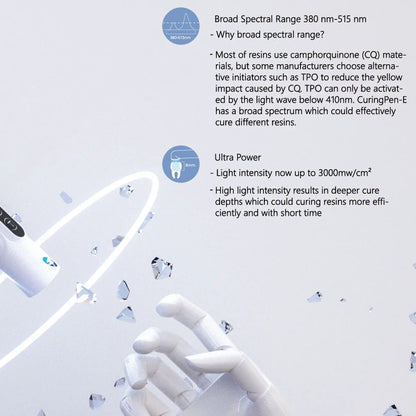

Wide Broad Spectral Range (380 nm - 515 nm)
Most dental composite resins adopt camphorquinone (CQ) photoinitiators. Some brands use TPO to reduce yellow discoloration, which only activates under 410nm wavelength. The full-spectrum output of CuringPen-E perfectly cures all types of resin materials.
Ultra High Power Output
Maximum light intensity up to 3000mW/cm². Higher power delivers deeper curing depth, shortens operation time and improves clinical efficiency.
Technical Specifications
Dimension: 19 × 16.5 × 7.5 cm
Net Weight: 120 g
Light Source Head Size: 12 mm
Output Lens Diameter: 8 mm
Max Light Intensity: 3000 mW/cm²
Spectral Wavelength: 380 nm - 515 nm
Why Choose CuringPen-E?
The CuringPen-E wireless LED curing light is a professional clinical tool for restorative dentistry. Equipped with 5 customizable working modes, full-spectrum light coverage and ergonomic lightweight body, it meets all curing demands for composite filling, bonding agent, orthodontic brackets and prosthetic repair. Ultra-high power reduces chair time, while the rotatable mini head brings great convenience for doctors and comfort for patients. Ideal for dental clinics, hospitals and dental training institutions worldwide.
