Product Details

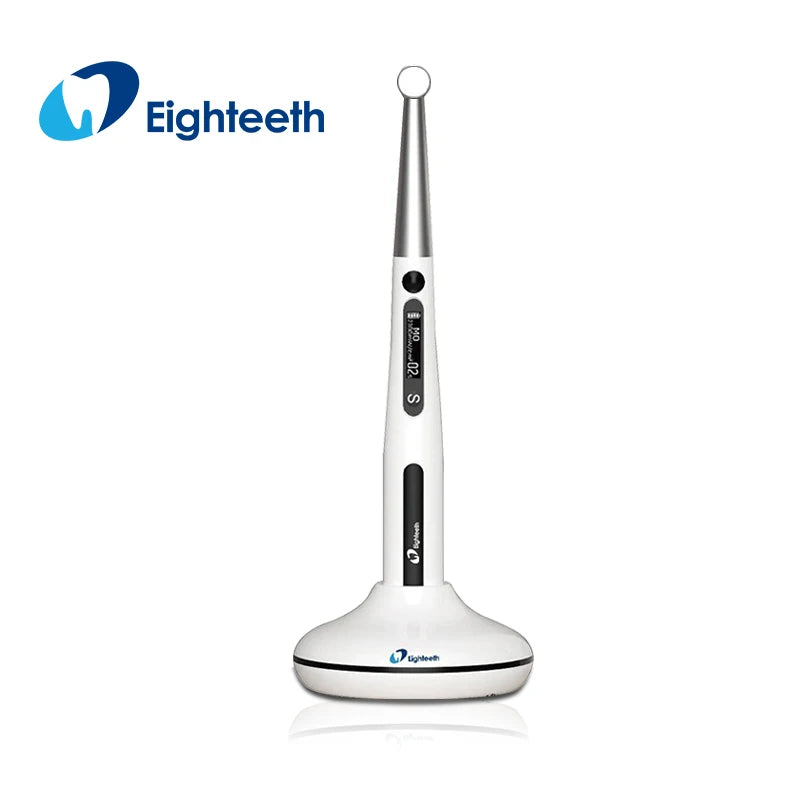

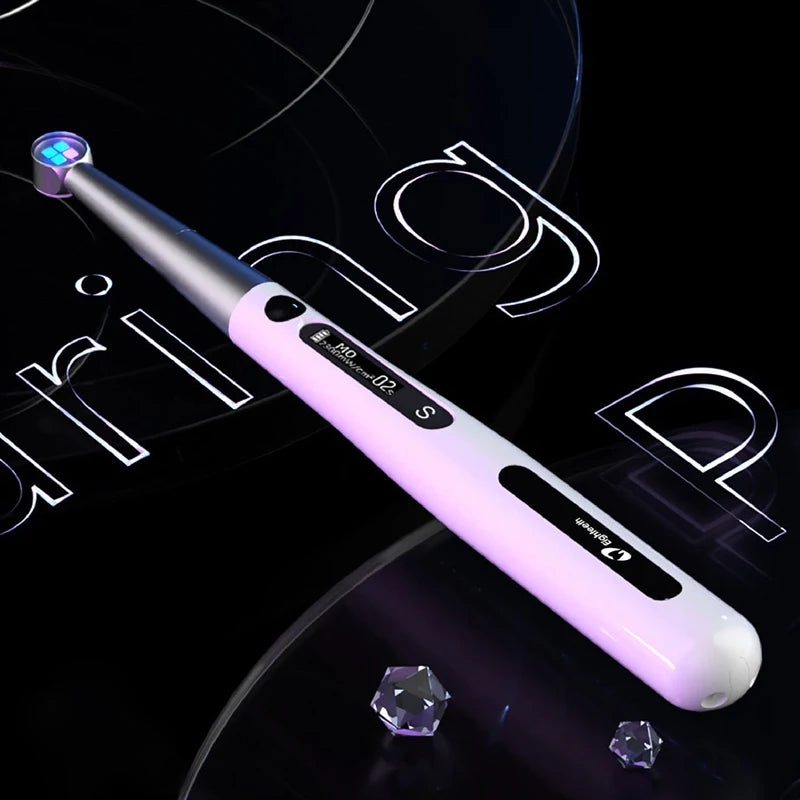

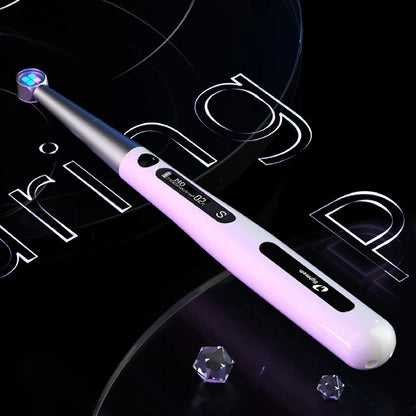

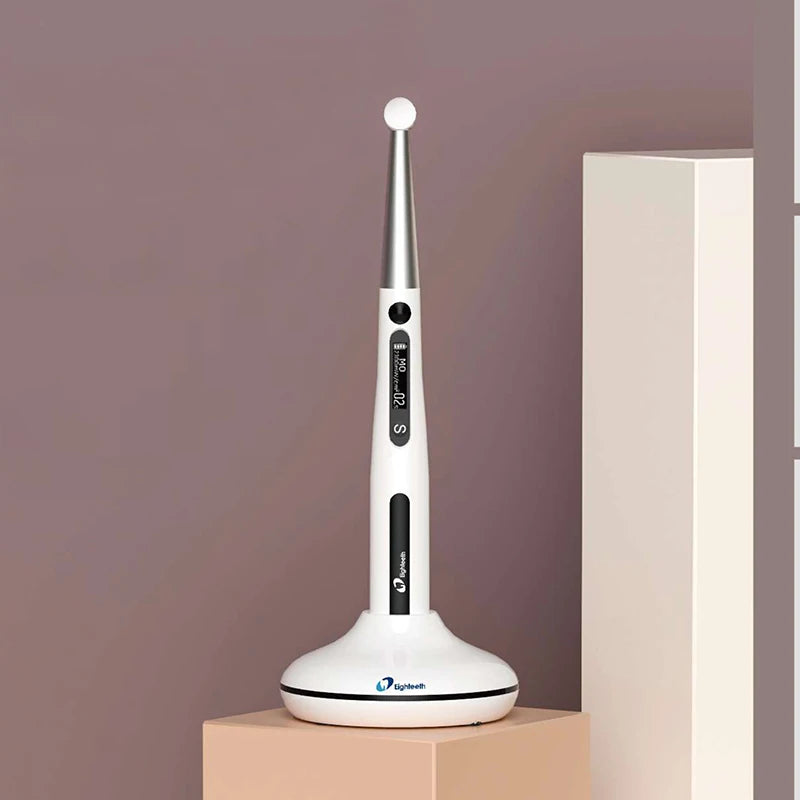

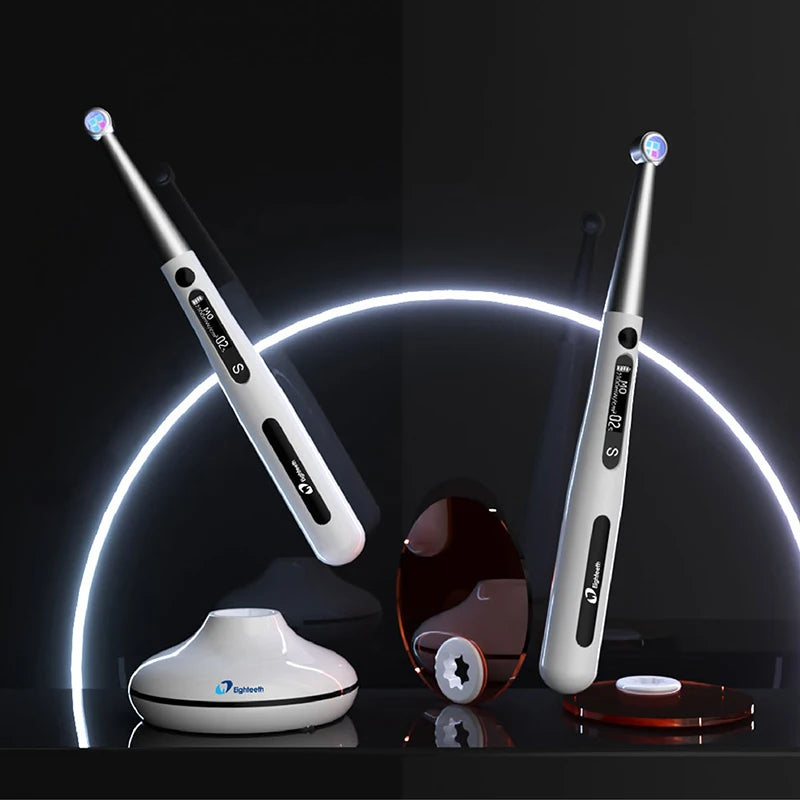

CuringPen 4 LEDs Dental LED Curing Light
dental curing light, led curing pen, 4 led dental light, 380-515nm curing lamp, caries detection curing light, wireless dental composite curing unit
Premium 4 LEDs dental curing pen built for reliable composite resin curing and integrated caries detection function, ideal for daily restorative dental treatment.
Core Optical Specifications

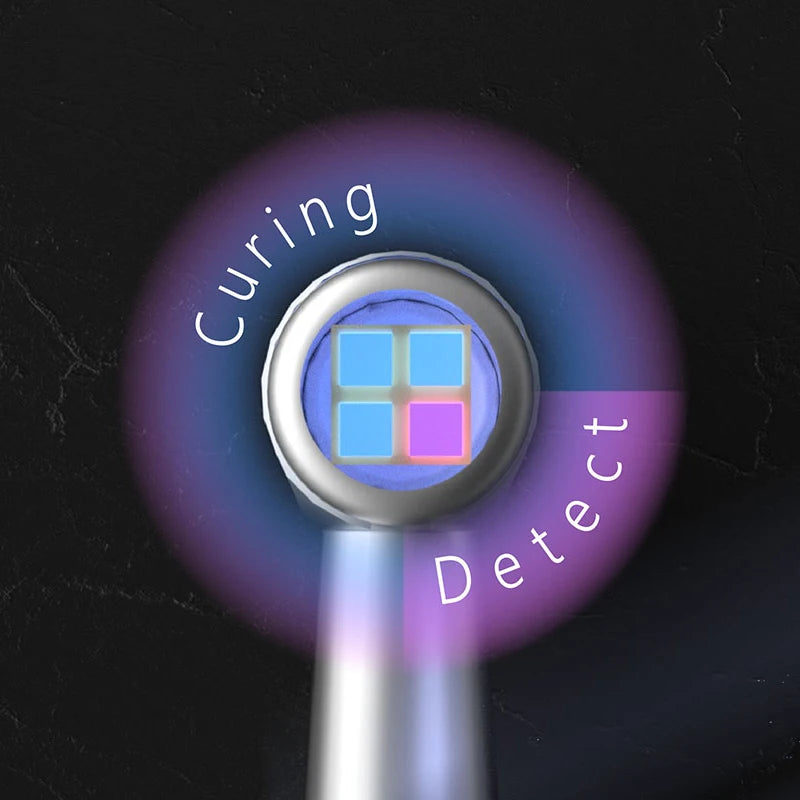

- Full spectrum wavelength: 380-515nm, includes 3 blue LEDs + 1 violet LED
- Max power up to 10W high-power LED light source
- Adjustable light intensity: 600mW/cm² (Detection Mode), 1000mW/cm², 1500mW/cm², 2300mW/cm²
- Built-in smart control chip to maintain stable consistent light output during operation
Multi Functional Curing Modes
- Ramp mode: Gradual intensity output with adjustable working time (10s /15s /20s)
- Pulse mode: Intermittent light output for sensitive restoration procedures
- 360° fully rotatable light head for easy access to all tooth quadrants
- Digital display screen showing real-time light intensity and working mode
- Independent caries detection mode for quick lesion screening
Complete Technical Parameters
- Overall dimension: 24*21*230 mm
- Net weight: 109g lightweight handheld design
- Light source head size: 113mm
- Light output lens diameter: 19.3mm
- Battery supports over 1200 times of full-power curing cycles
- 2300mW/cm² high intensity mode cures filling material within only 3 seconds
